Description

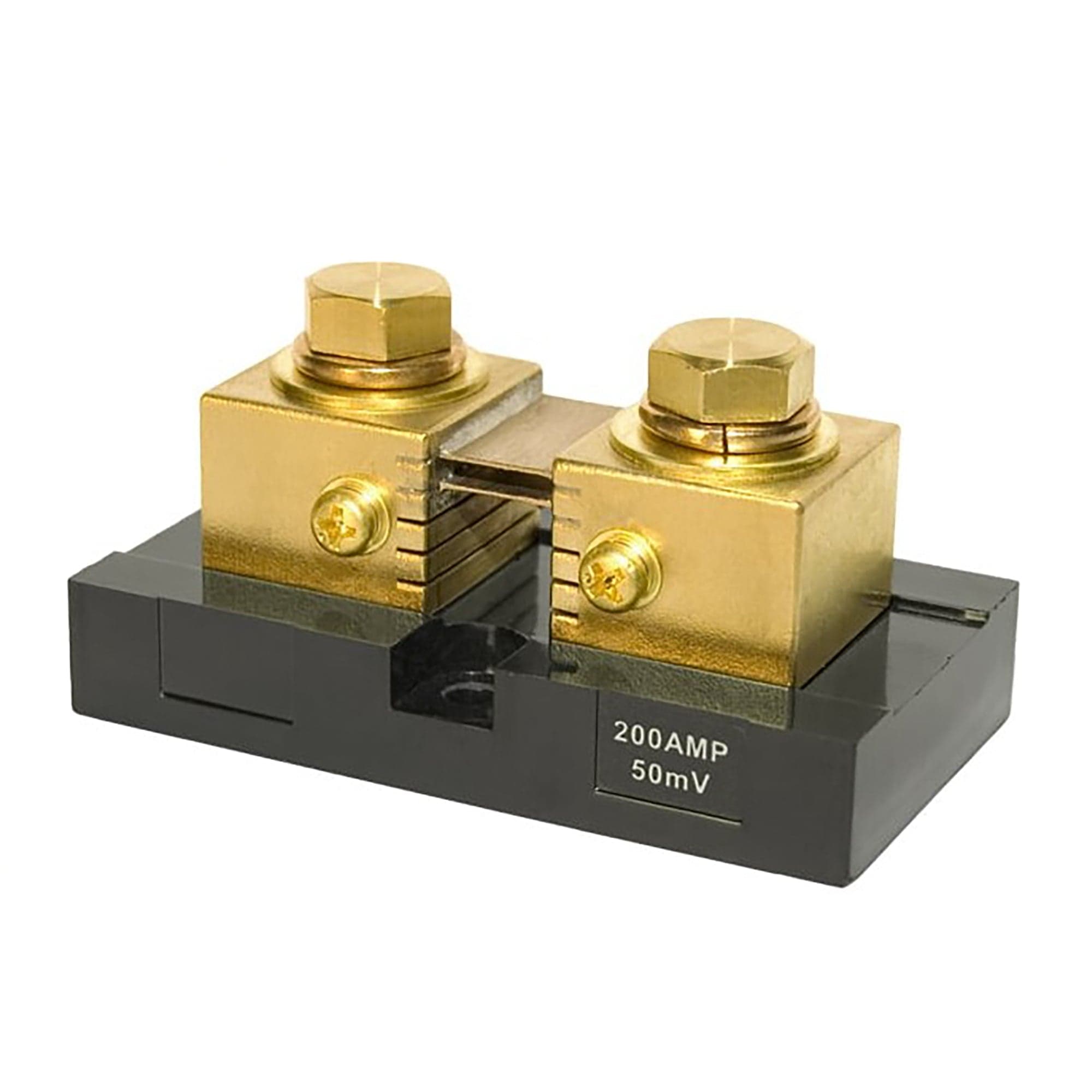

This is a 200A Analog Meter Shunt from Blue Sea Systems. Great for use with DC Ammeters.
- For use with DC Ammeters
- For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions
California Proposition 65: WARNING Cancer. www.P65Warnings.ca.gov
Specifications
| Continuous Duty | 66% of Rated Current |
| Full Scale | 50 Milivolts |
| Intermittent Duty | 300% @ 3 Seconds 100% @ 5 Minutes |
| Ratio | 200A DC/50mV DC |
| Dimensions (LxWxH) | 4.5 x 3 x 2 inches |
| Shunt Type | Resistive, Manganin Metal Element |
