Description

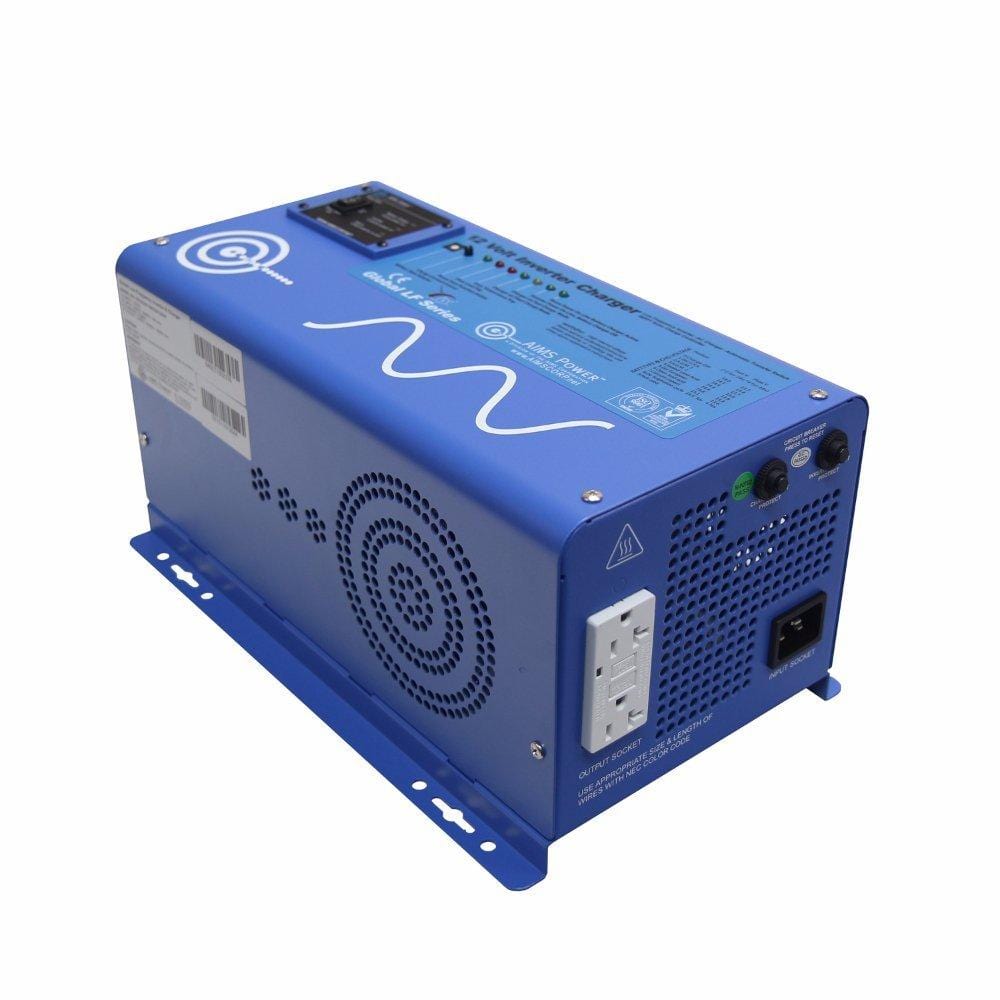

AIMS Power PICOGLF15W12V120VR 1500W Pure Sine Inverter Charger. 1500 watt low frequency inverter.
Specifications
| charger rate | 50A |
| continuous output power | 1500 Watts |
| dimensions | 14.1 L x 8.74 W x 7.10 H inches |
| high voltage alarm | 16.0Vdc |
| idle consumption | 13.5 Watts |
| input voltage | 120 Volts |
| line mode efficiency | >95% |
| low battery alarm | 10.5Vdc-11.0Vdc |
| low battery trip | 10.0Vdc-10.5Vdc |
| minimum start voltage | 10.0Vdc |
| nominal efficiency | >88% (Peak) |
| nominal input voltage | 12.0Vdc |
| output frequency | 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz |
| output voltage | Depends on battery Type |
| thd | < 10% DC |
| typical transfer time | 10ms (Max) |
| waveform | Pure Sine Wave |
| weight | 33 lbs. |
