Description

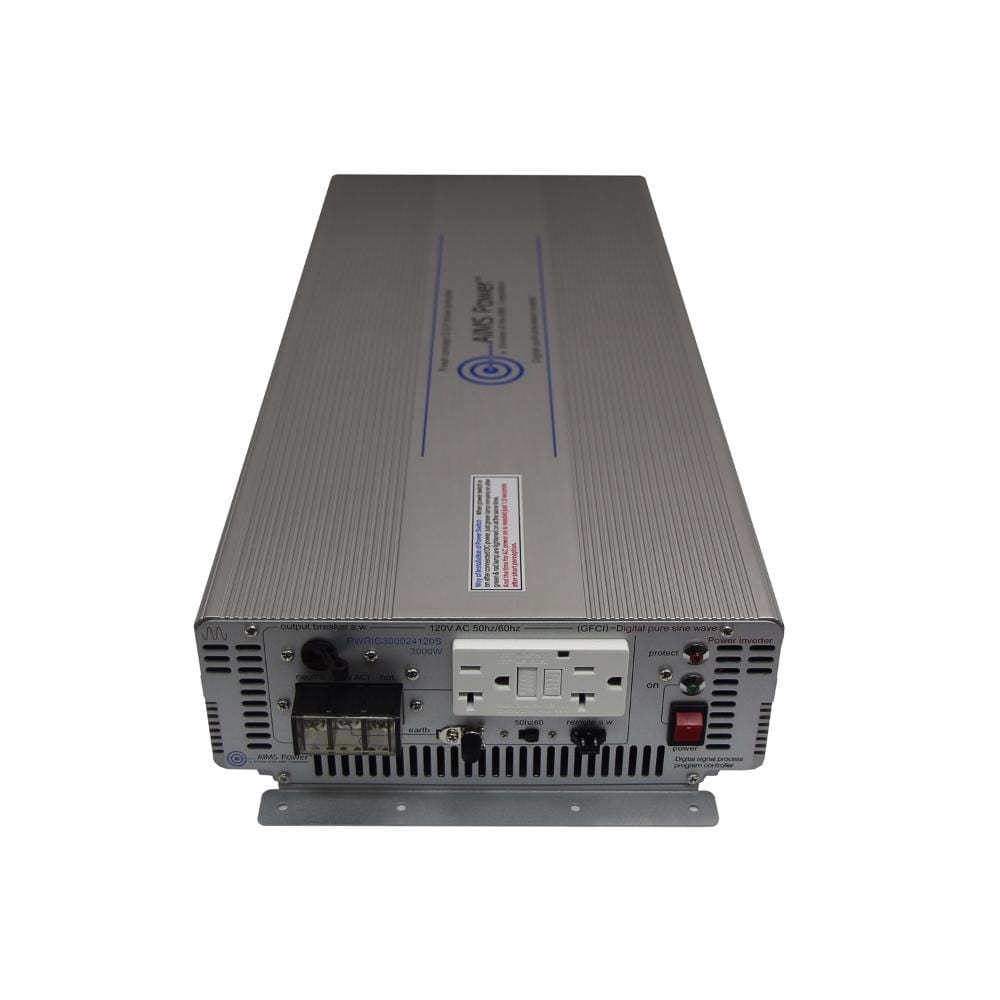

The AIMS PWRIG300024120S pure sine wave inverter converts 24 volt DC power to 120 volts of clean AC power.
- 3000 Watt continuous power
- 6000 Watt surge
- 24 Volt DC input
- Pure sine wave
- 60hz or 50hz switch
- Highly efficient – improved output at low voltage
- 1 – GFCI Dual Outlet
- Direct connect AC Terminal Block
- Connector and cable for remote on/off switch
- Isolated ground & neutral
- Short circuit protection (GFCI and AC Breaker)
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker
- DC volt meter included
- Dual cooling fans thermally controlled
- Instruction manual
- 1 year tech support
- 1 Year Warranty Parts and Labor replacement
Specifications
| 1/3 load efficiency | 0.95 |
| battery low voltage shutdown | 20.0 v +/- 0.5 Volts |
| brand | Aims |
| dc input / operating voltage | 21 - 32 Volts |
| dimensions | 20.47" x 8.86" x 3.50" |
| full load efficiency | 0.9 |
| high input voltage protection | 34V |
| input voltage | 24 Volts |
| low battery alarm | 21 +/- 0.5 Volts |
| low input voltage shutdown | 20V |
| maximum operating temperature | 176 Degrees Fahrenheit (Automatic Shutdown) (Full Load) |
| minimum operating temperature | -4 Degrees Fahrenheit (No Load) |
| no load power consumption | Fan Off |
| output frequency | 50/60 Hz |
| output voltage | 120 Volts |
| output voltage regulation | +/- 3% |
| surge watts (peak power) | 6000 Watts |
| thd | <5% |
| wattage | 3000 Watts |
| waveform | Pure Sine Wave |
| weight | 16.09 lbs |
