Description

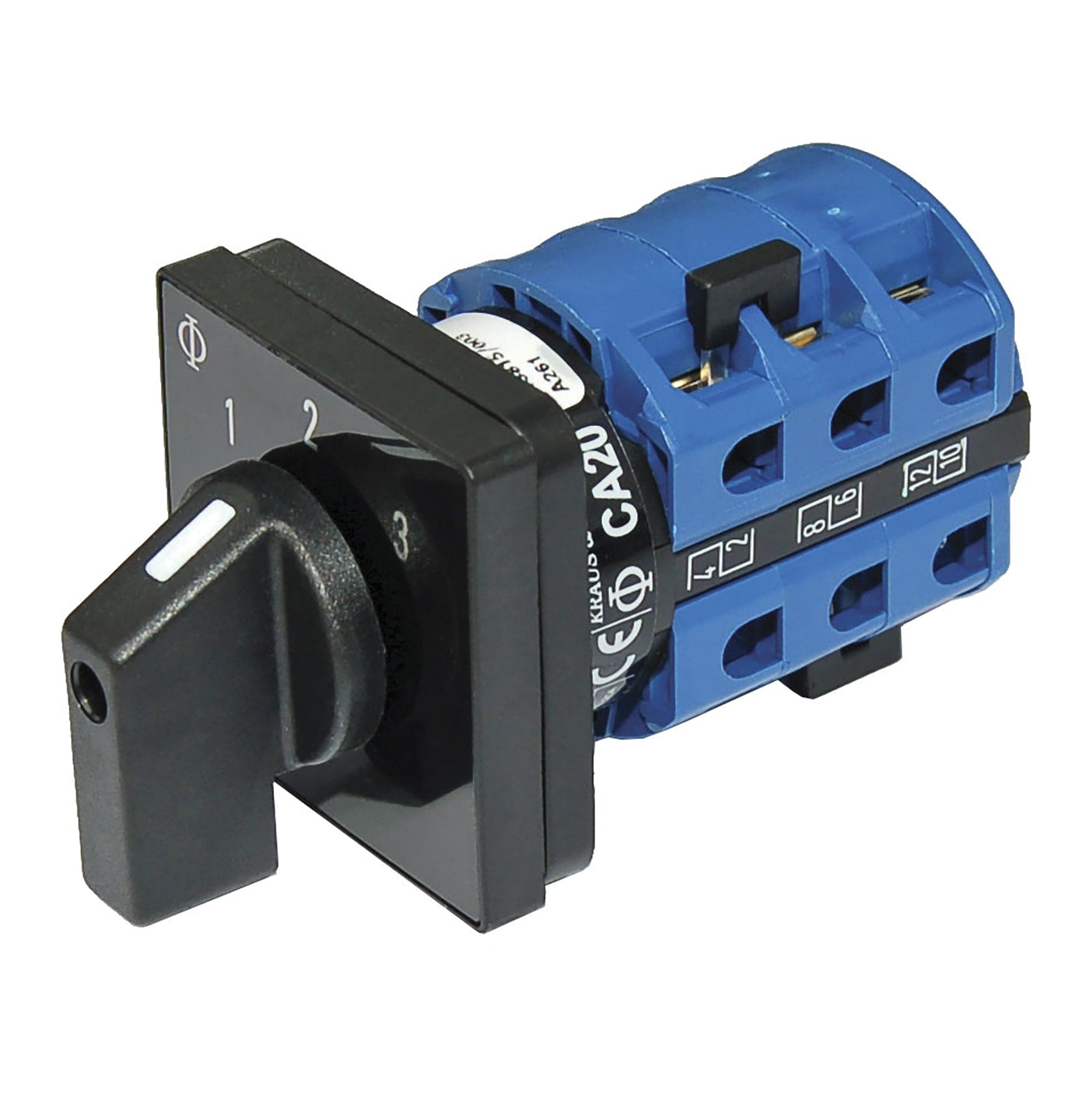

The Blue Sea Systems AC Switch Rotary 120VAC 30A OFF+3 (9010) offers reliable control over AC electrical circuits with its robust design and versatile functionality.
- Switches 3 - 120 or 230 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16" (4.00mm) thick
- Heavy duty industrial rated switch
- Intuitive function - One hand operation
- UL listed
California Proposition 65: WARNING Cancer www.P65Warnings.ca.gov
| Positions | 3 + OFF |
| Source Selection | 3 |
| Nominal Voltage | 120V |
| Poles | 2 |
| Load Circuits Out | 1 |
| Maximum Amperage | 30A |
| Maximum Voltage | 600V AC |
| Source In | 3 |
| Height | 1.89in (48.01 mm) |
| Width | 1.89in (48.01 mm) |
| Depth | 2.41in (61.21 mm) |
| Weight | 0.70lb (0.32 kg) |
