Description

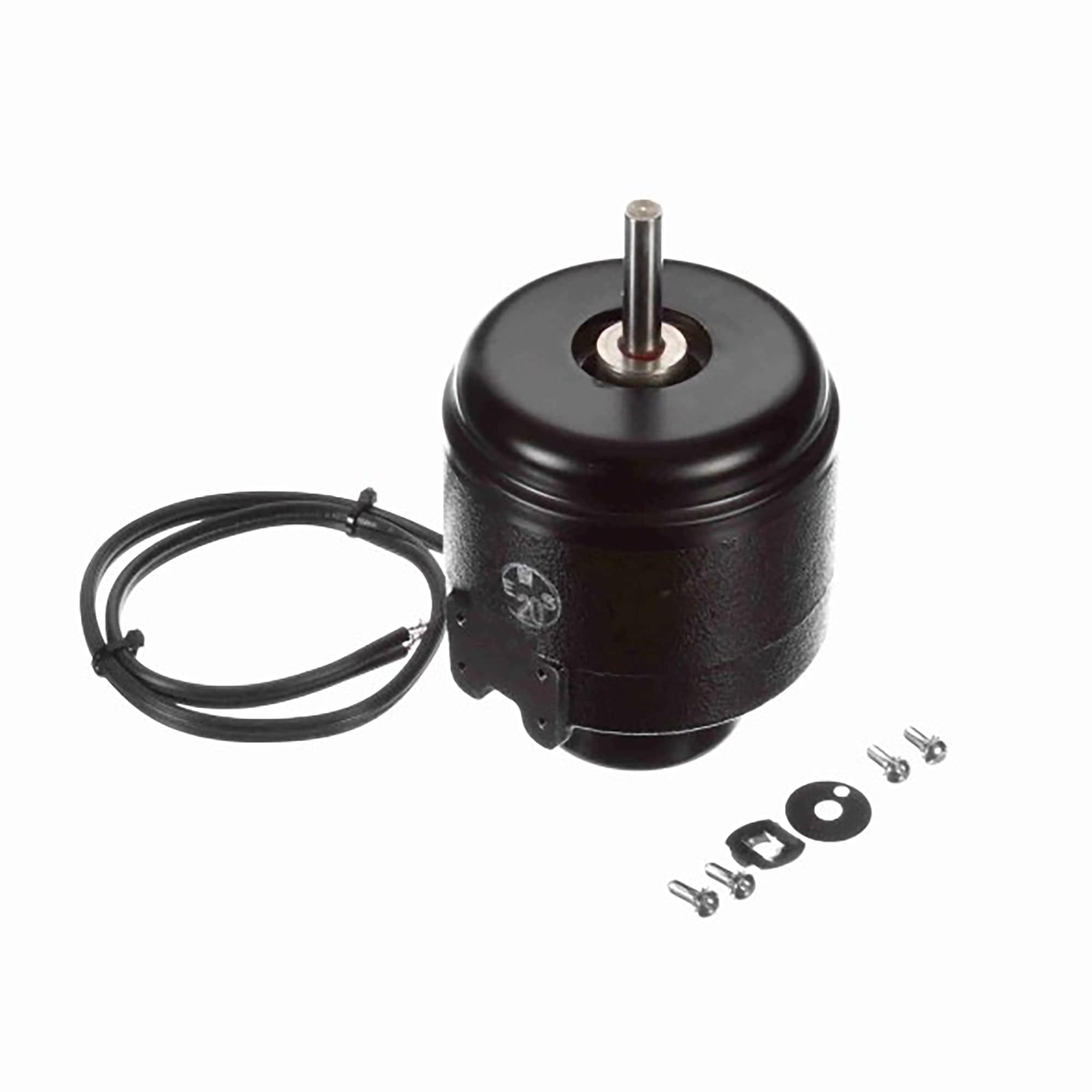

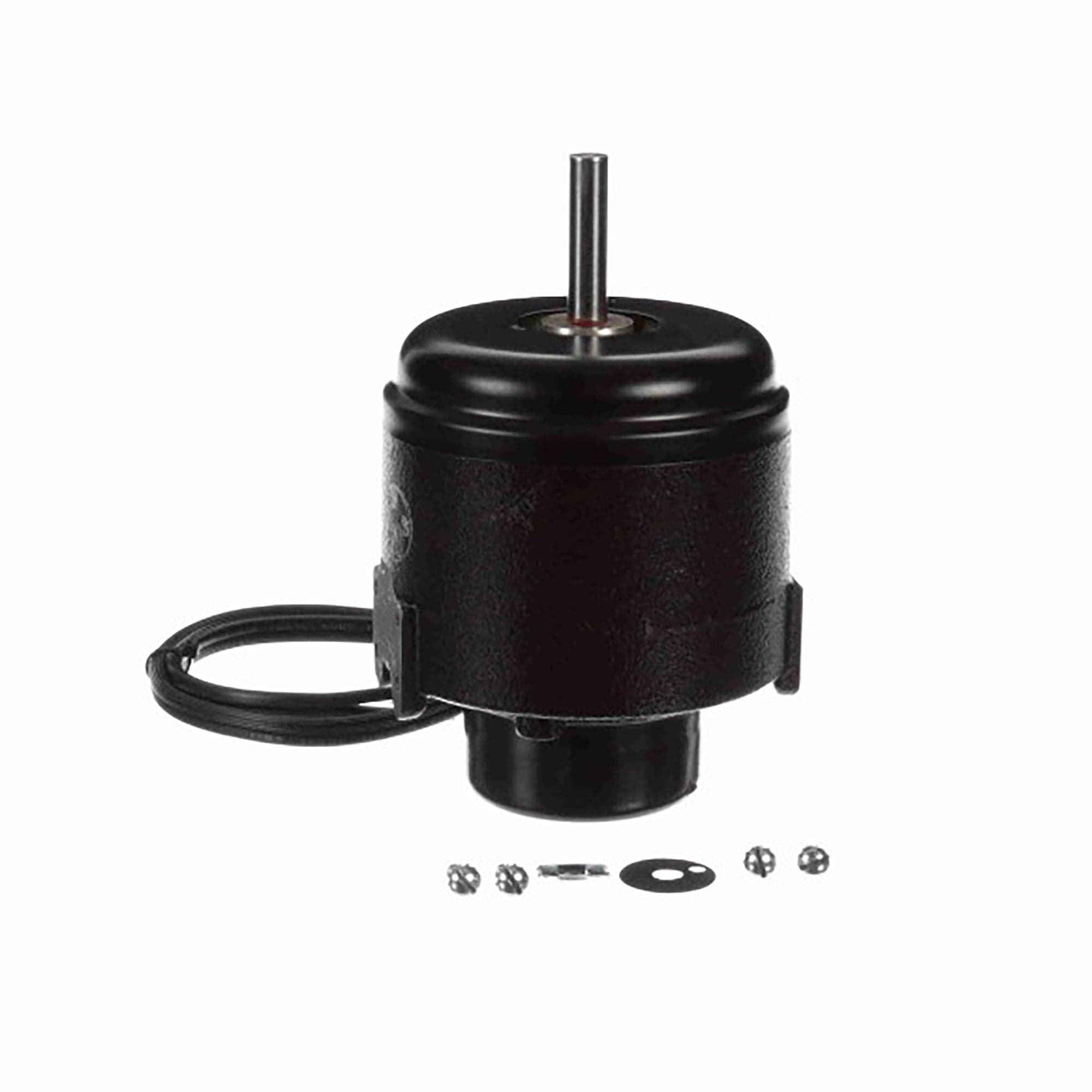

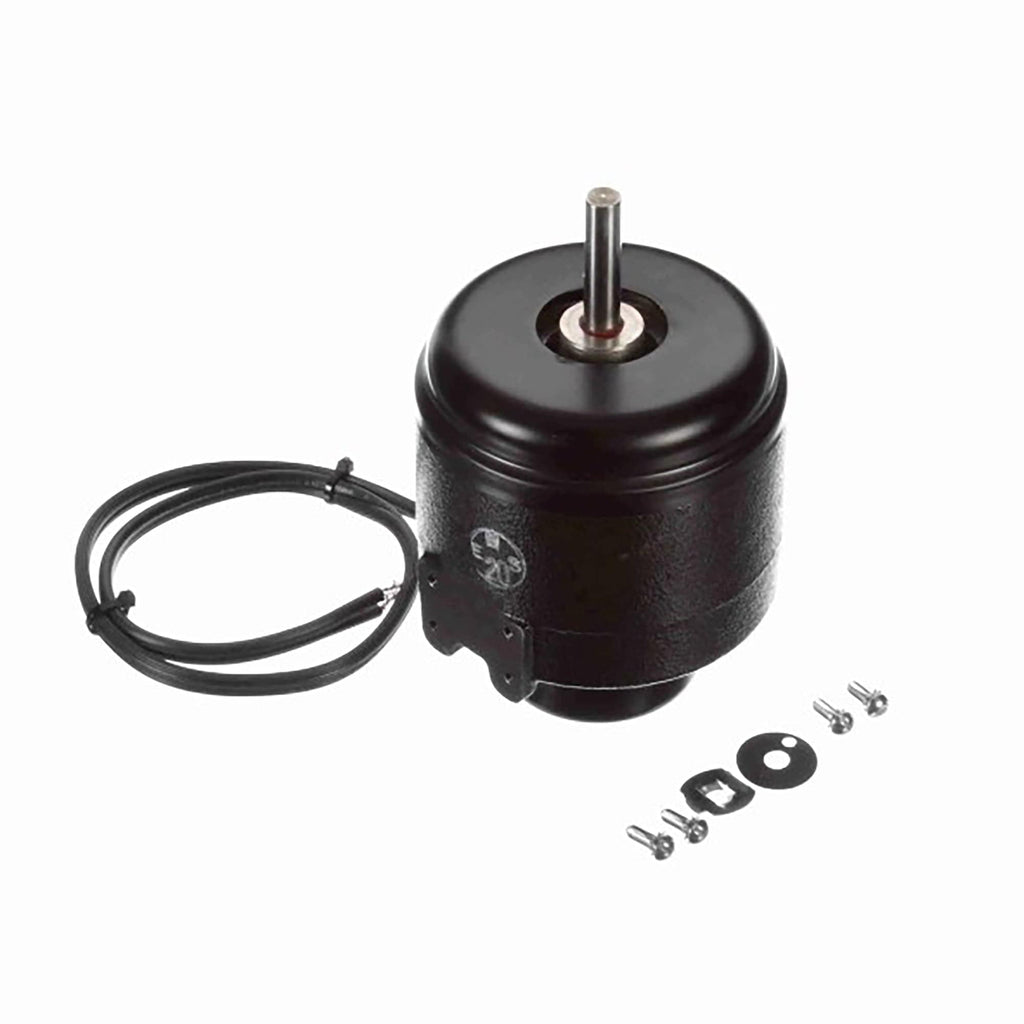

50 Watt, 1500 RPM, 115V, Unit Bearing 258 by Century Motor.
Features:
- OEM Direct Replacement Motor
- Unit Bearing
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class A Insulation, 40°C Ambient
- Bearing - Unit
- 3/8" Diameter Shaft with Flat
- 22" Leads
- Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
Specifications:
| Phase: | 1 | Output Watts: | 50 W |
| Voltage: | 115 V | Speed: | 1500 rpm |
| Service Factor: | 1 | Frame: | UNIT BEARING |
| Enclosure: | Totally Enclosed Air Over | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 1.7 A | Duty: | Continuous |
| Insulation Class: | A | UL: | Recognized |
| CSA: | Y | CE: | N |
| Number of Speeds: | 1 |
