Description

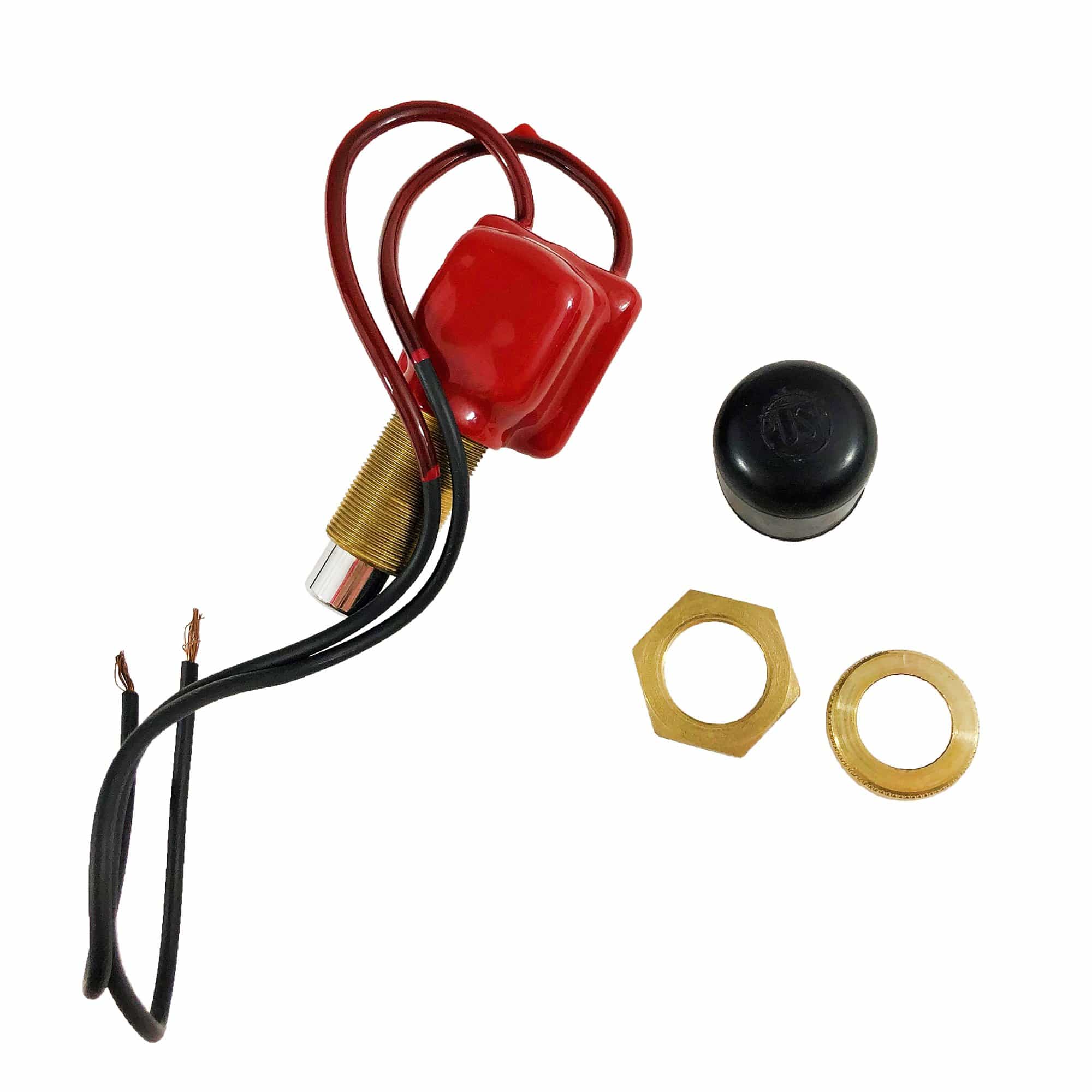

M-608 BP is single-circuit push-button OFF-(ON) switch installs into panels up to 1/2" thick to control various 6 - 36V DC marine applications, by Cole Hersee.
Features:
- Terminals two 18AWG wire leads 12" (304.8 mm) long
- Mounting Panel Thickness up to1/2" (6.35 mm) , brass, brass, 5/8" - 32 (15.87 mm) dia.
- Contacts copper alloy
- Button brass, chrome-plated
- Face Nut brass with black rubber cap and brass hex nut
- Sealing plasticized body for moisture and dirt protection
- Protective Cap Rubber
- Housing brass
- Dimensions Not applicable
- Weather-Resistant plasticized body for moisture and dirt protection
- Electrical Rating 10A at 12V DC
