Description

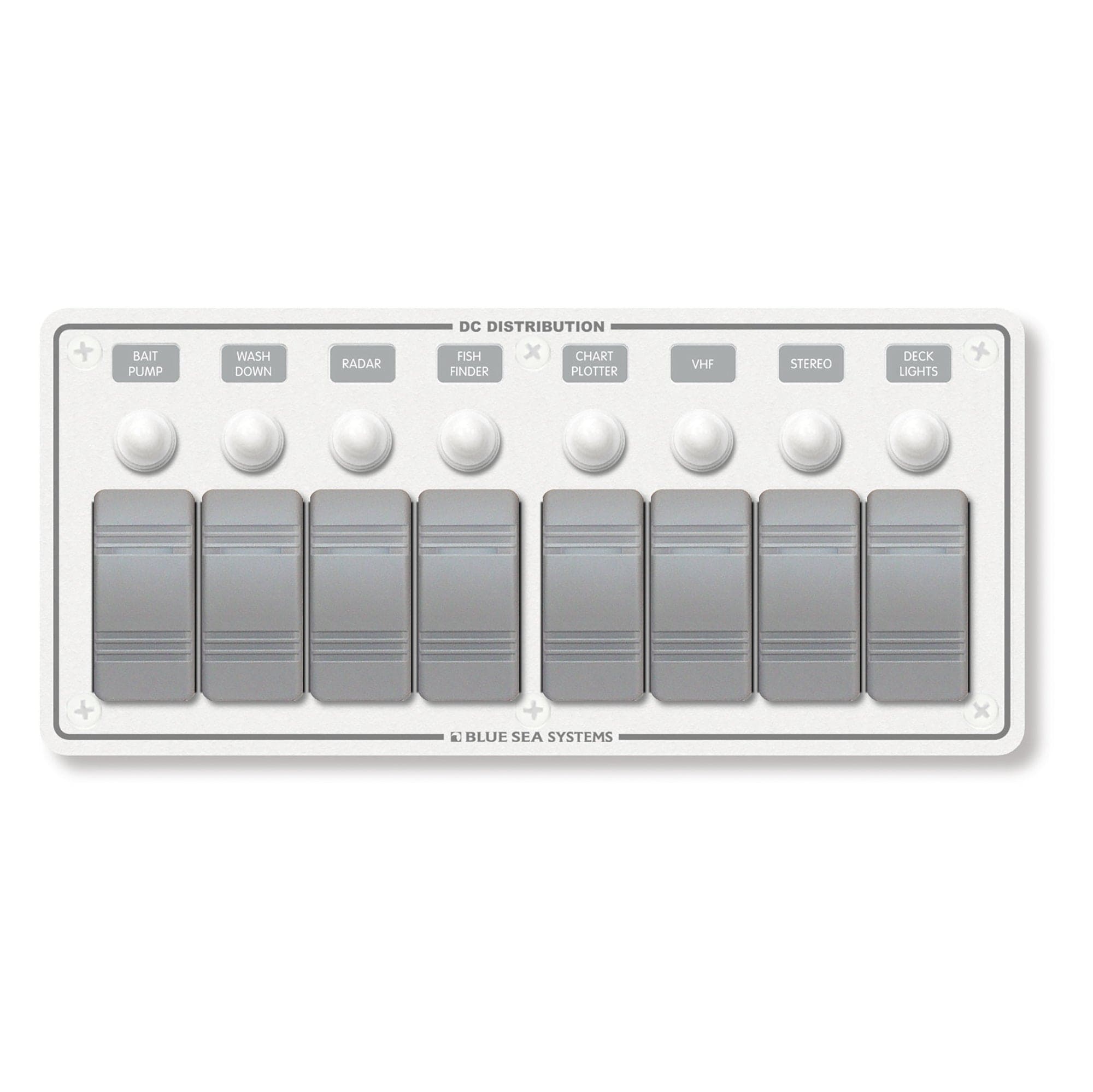

Introducing the Contura Water Resistant 12V DC Circuit Breaker Panel - White 8 Position
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66 - Protected against powerful water jets
- Ignition protected - safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset-Only circuit breakers with waterproof boots
California Proposition 65: WARNING Cancer. www.P65Warnings.ca.gov
Specifications
| Depth | 3.25in (82.55 mm) |
| Height | 4.25in (107.95 mm) |
| Nominal Voltage | 12V DC / 24V DC |
| Panel Cumulative Rating | 90A |
| Positions | 8 |
| Switch Rating | 20A @ 12V DC / 15A @ 24V DC |
| Weatherproof | Water Resistant |
| Weight | 1.75lb (0.79 kg) |
| Width | .37in (238 mm) |
