Description

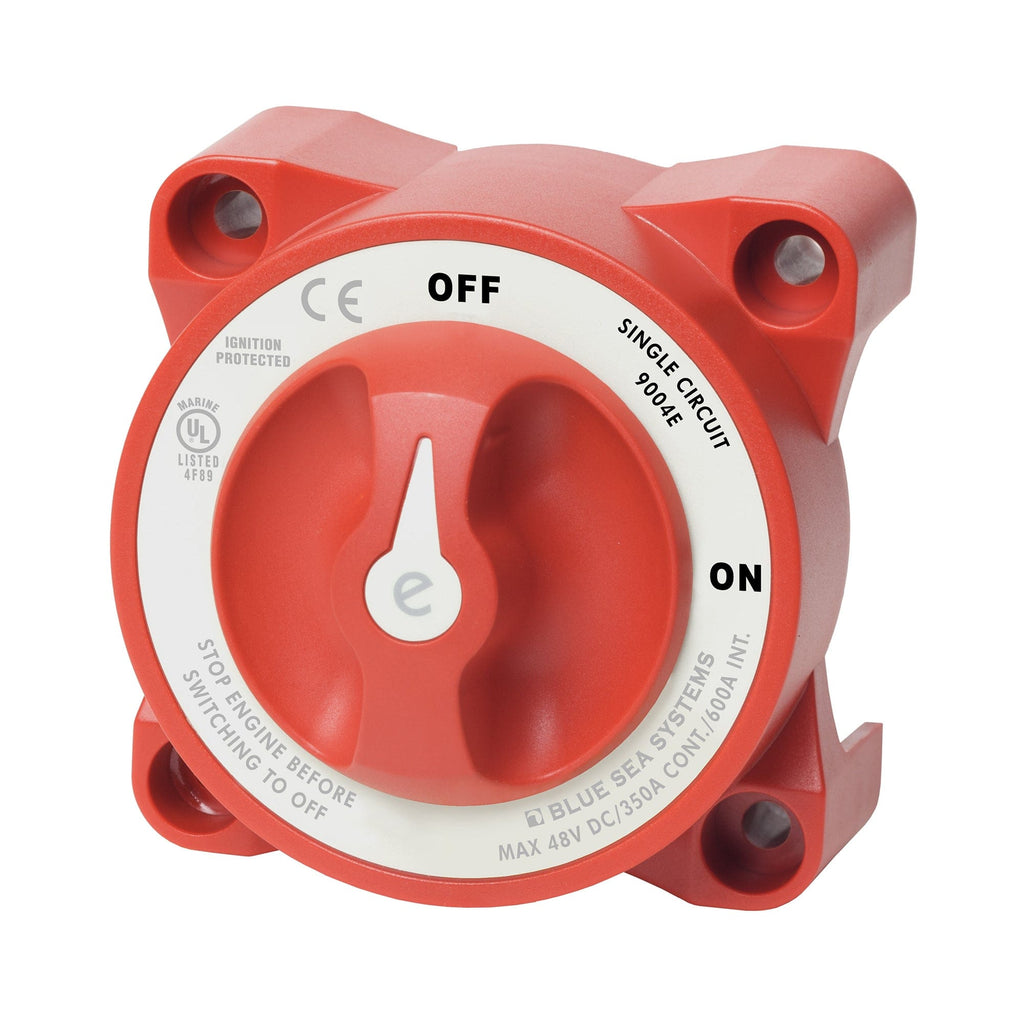

Introducing the e-Series On-Off Battery Switch
- Switches a single battery to a single load group
- Includes AFD (Alternator Field Disconnect)
- Ignition protected - safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
California Proposition 65: WARNING Cancer. www.P65Warnings.ca.gov
Specifications
| Alternator Field Disconnect | Yes |
| Battery Combine | No |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | For 4/0 AWG Cables: 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Color | Red |
| Continuous Rating | 350A |
| Cranking Rating 30 sec | 1200A |
| Intermittent Rating | 600A (5 min) |
| Maximum Voltage | 48V DC |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Switch Positions | 2 |
| Switch Type | Single Circuit ON-OFF |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
