Description

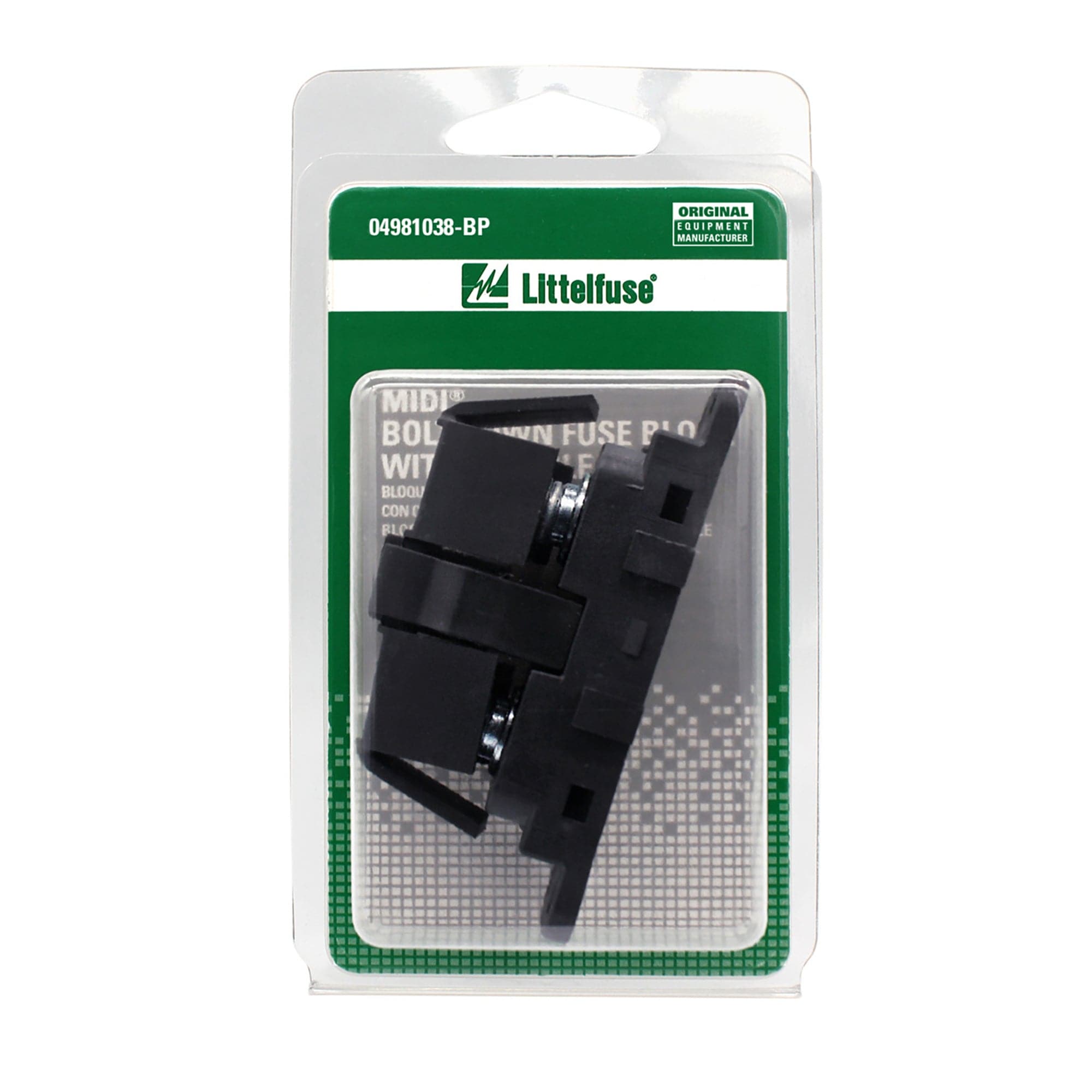

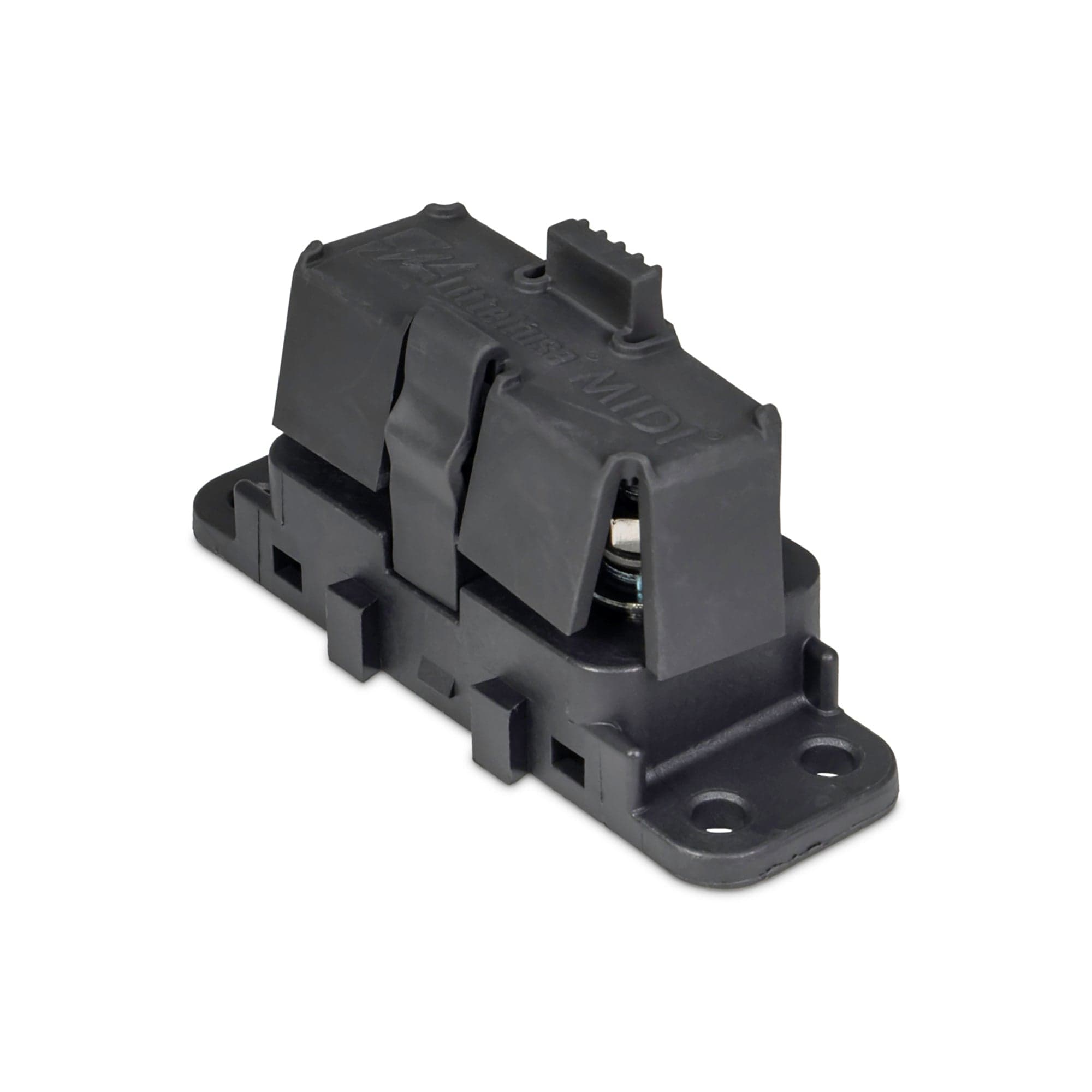

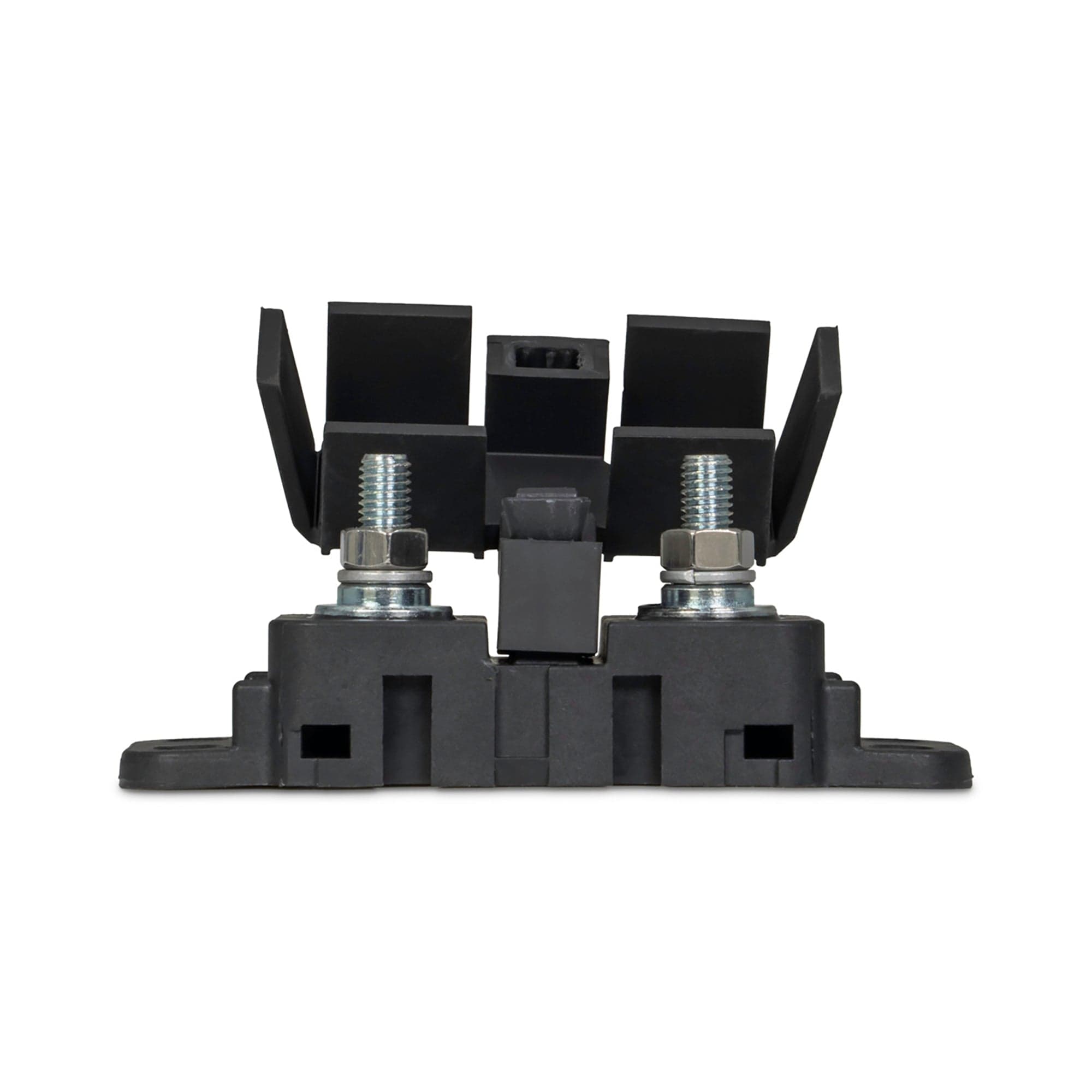

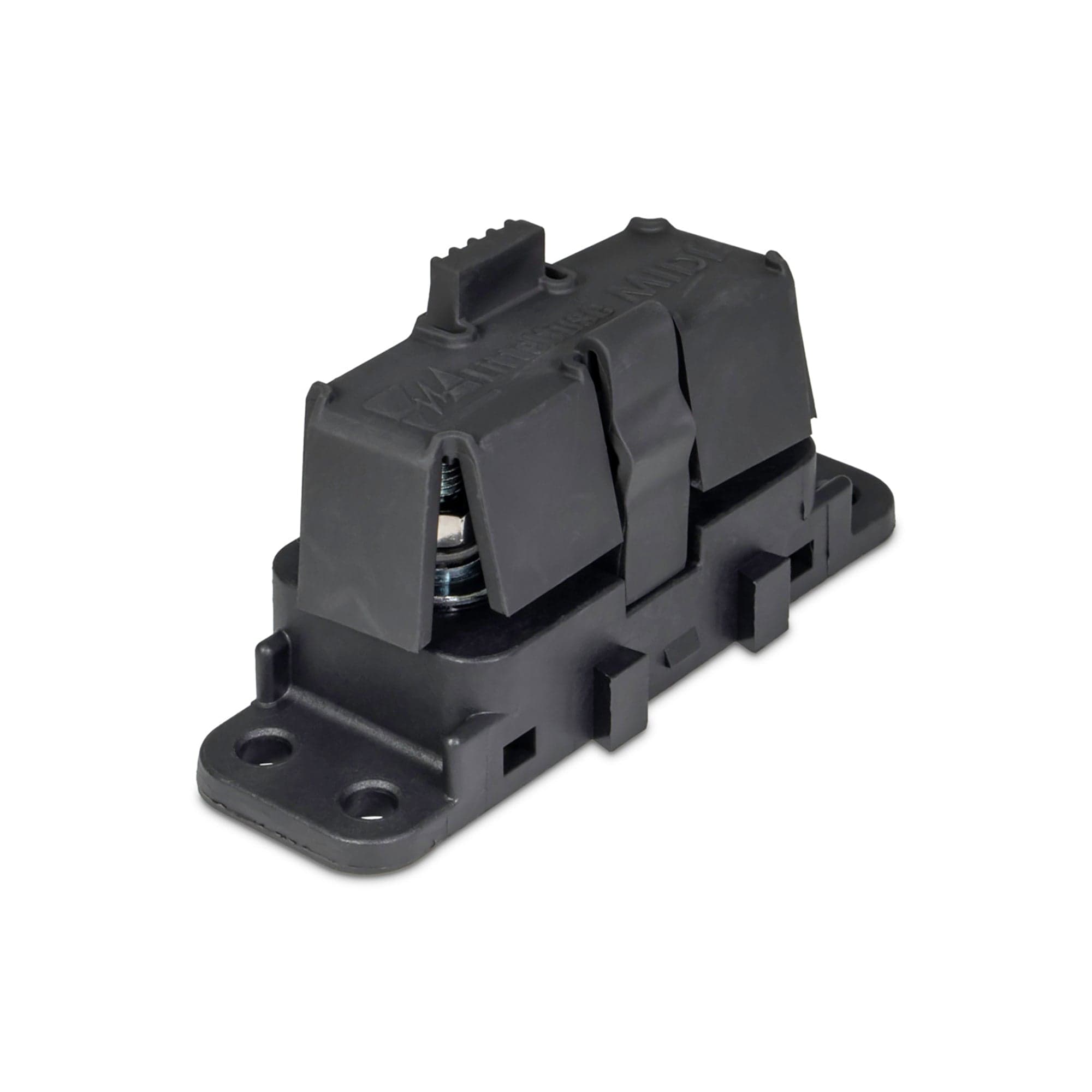

The MIDI Flex Series 58 V Bolt-Down Fuse Holder makes it simple to install up to a 200 A MIDI fuse. Its cover features 6 different positions for cable entry and accommodates large wire sizes and ring terminal stack up.
This bolt-down fuse holder has a dovetail feature on the sides that lets you connect multiple MIDI® Flex Series fuse holders. Busbars for multi-fuse applications are available (sold separately) so you can create a fused automotive power distribution block. MIDI® Flex Series fuse holders can also be combined with MEGA Flex Series fuse holders (sold separately) for a high- and low-amperage solution.
Mounting Method: Bolt Down
Fuse Type: MIDI
Current Rating Max (A): 200
Current Rating (Continuous) in Amps: 150
Voltage Rating (V): 58
Temperature Maximum (°C): 125
Temperature Minimum (°C): -40
Recommended Torque: Fuse Stud: 3 - 5Nm
Flammability Rating: UL 94 V-0
Ignition protection: V-0
Input Terminals: M5
Output Terminals: M5
Hardware: Zinc-Plated Steel
