Description

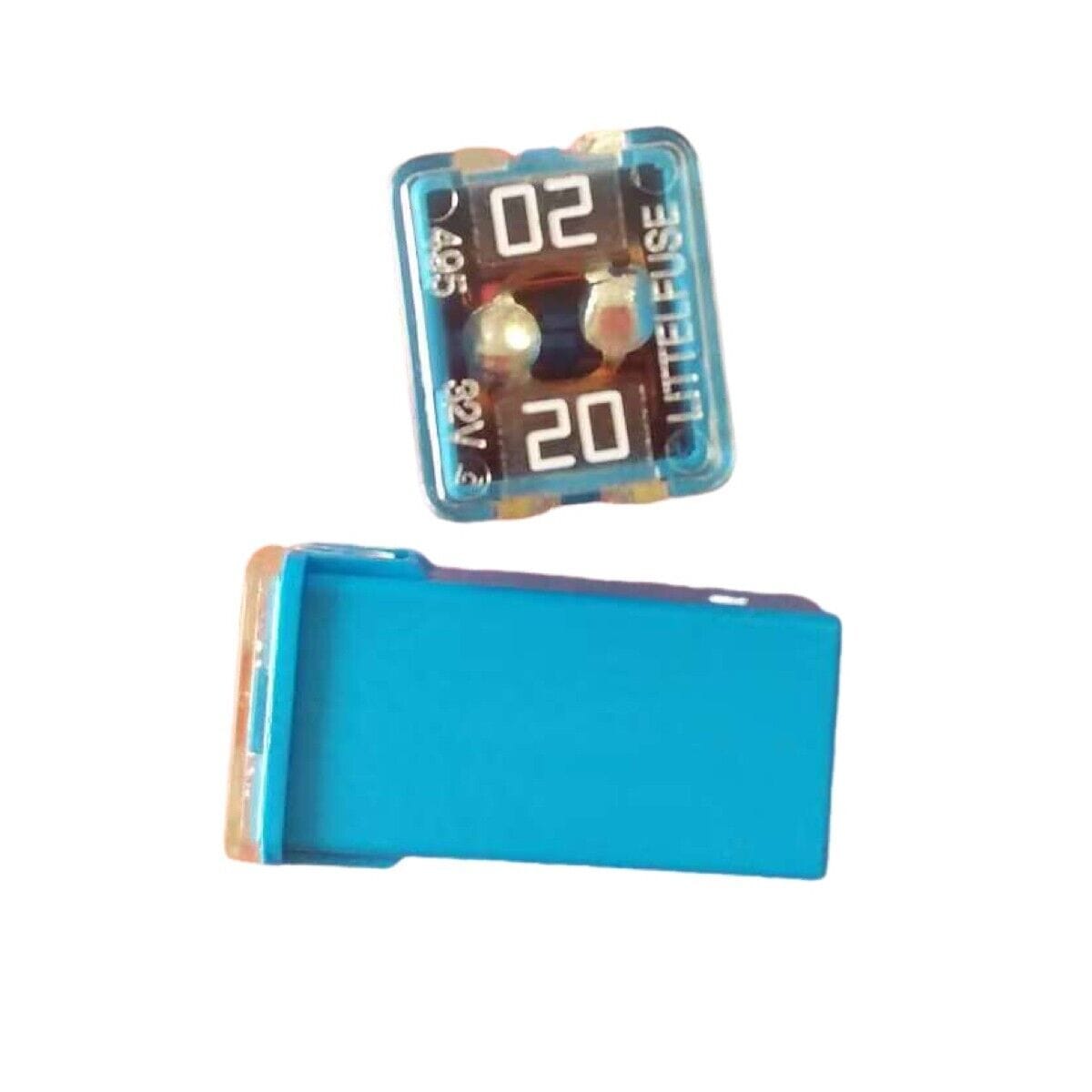

Fuse - JCASE 32V 20A 10 PC Littelfuse 0495020.TXA
The JCASE is a cartridge style fuse with female terminal design, providing both increased time delay and low voltage drop to protect high current circuits and handle inrush currents.
Semitransparent cover makes it easier to see when fuse blows
Color coding indicates amperage rating for each fuse
SHUNT version available
High-contrast amperage stamp on the top of the housing aids identification
Comply with ISO 8820-4
Voltage Rating: 32 V DC
Interrupting Rating: 1000 A @ 32 V DC
Recommended Environmental
Temperature: -40 C to +125 C
Housing Material: PA66-GF13 (UL 94 Flammability rating – HB)
Housing Material (60A): PA66-GF13HS (UL 94 Flammability rating – HB)
Cover Material: PC (UL 94 Flammability rating – HB)
Typical Weight per Fuse: 3.8 g
Fuse Insertion Force: 53 N Max. (12 lb.)
Extraction Force: 9 N Min (2 lb.)
