Description
The DLS 27V 40A Power Converter/Battery Charger from IOTA converts nominal 108-132 AC voltage to 27.2 DC voltage for both DC load operation and 24V battery charging.
As a power supply, the unit's tightly controlled regulation allows the user to operate a nominal 24VDC load up to 40 amps.
As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the DLS will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.
Specifications (General)
- Input Voltage: 108-132 VAC
- Input Frequency: 50-60 Hz
- Output Voltage: 27.2 VDC
- Output Amperage: 40 Amps
Features
- Switch-mode technology
- Exceptionally clean DC output
- Tight line-load regulation
- Quickly and efficiently charges batteries
- Power Factor Correction (PFC) charging
- Designed to withstand low transient AC line voltage
- Current limit and thermal/overload protection
- Lower operating temperature
- Quiet fan operation
- External reverse polarity fuse protection from incorrect battery connection
- High and normal-stage charging jack
- Compatible with the IOTA IQ Smart Charge Controllers
- UL and CUL listed
- Two year warranty
Protection Features
- Reverse battery polarity (external fuse)
- Short circuit
- Brown out input
- Over current
- Over temperature
- Over load
Specifications (General):
- DC Output Voltage (No Load) approx: 27.2V (DC)
- Output Voltage Tolerance (No Load): + or - .5%
- Output Voltage (Full Load) approx: >27.0V (DC)
- Ripple and Noise: <100 mV rms
- Input Voltage Range: 108 - 132 VAC
- Input Voltage Frequency: 47-63
- Typical Efficiency: >80%
- Short Circuit Protection: Yes
- Line Regulation: 100 mV rms
- Overload Protection: >100%
- Load Regulation: <1%
- Fan Control

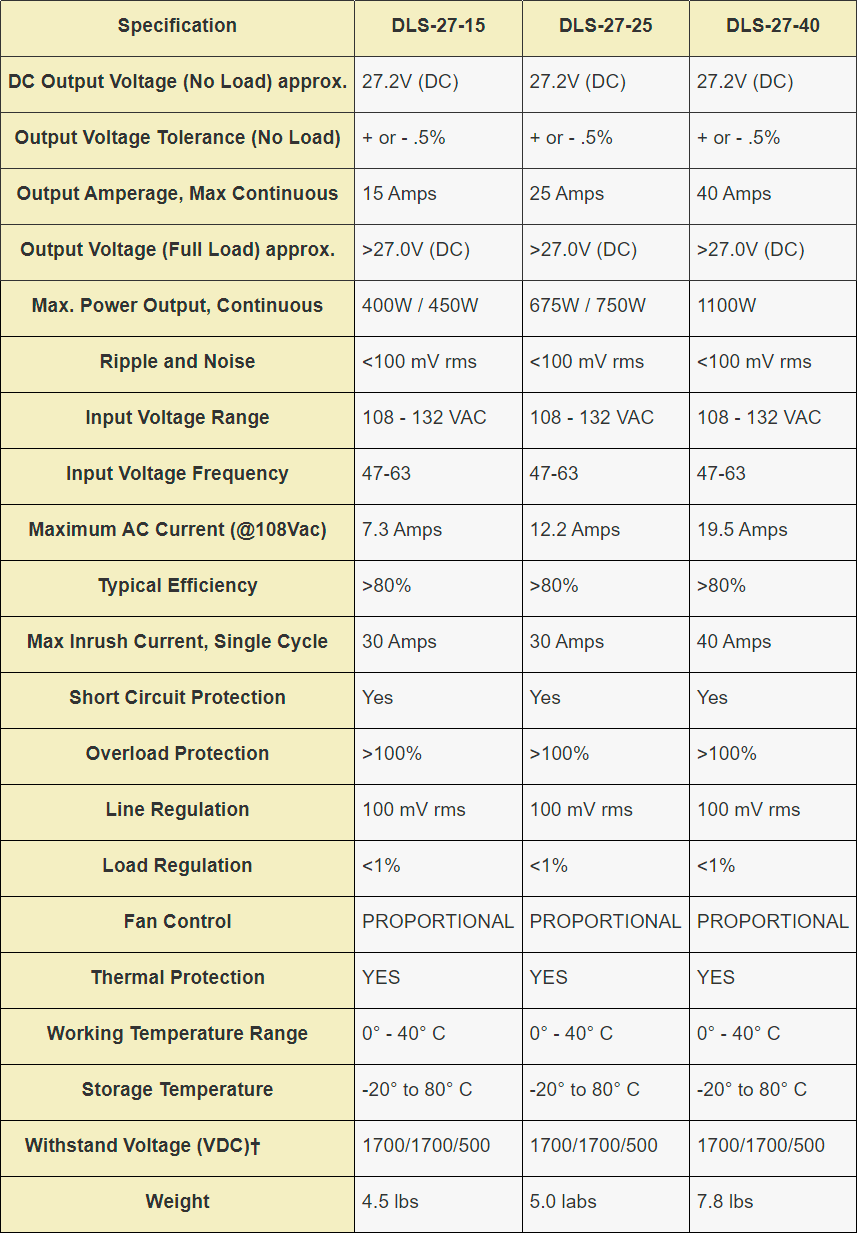

Specifications By Model (Click Here):
-

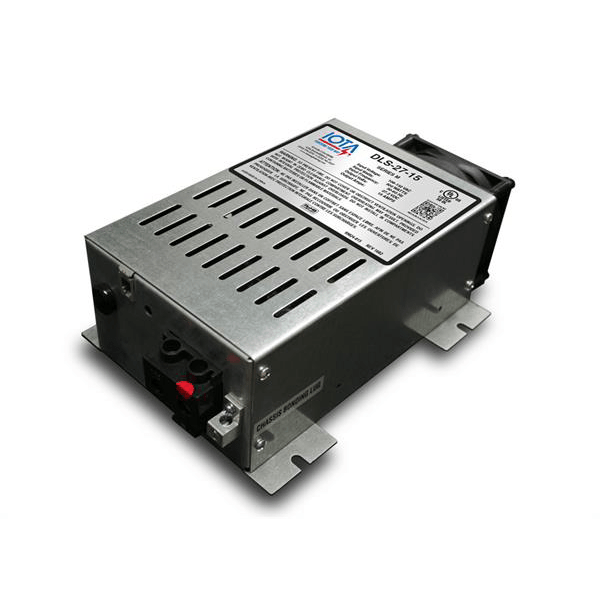

DLS-27-15
- Amps: 15A
- Max. Power Output, Continuous: 400W / 450W
- Maximum AC Current (@108Vac): 7.3A
- Max Inrush Current, Single Cycle: 30A
- Weight: 4.5 lbs
-
DLS-27-25
- Amps: 25A
- Max. Power Output, Continuous: 675W / 750W
- Maximum AC Current (@108Vac): 12.2A
- Max Inrush Current, Single Cycle: 30A
- Weight: 5.0 lbs
-

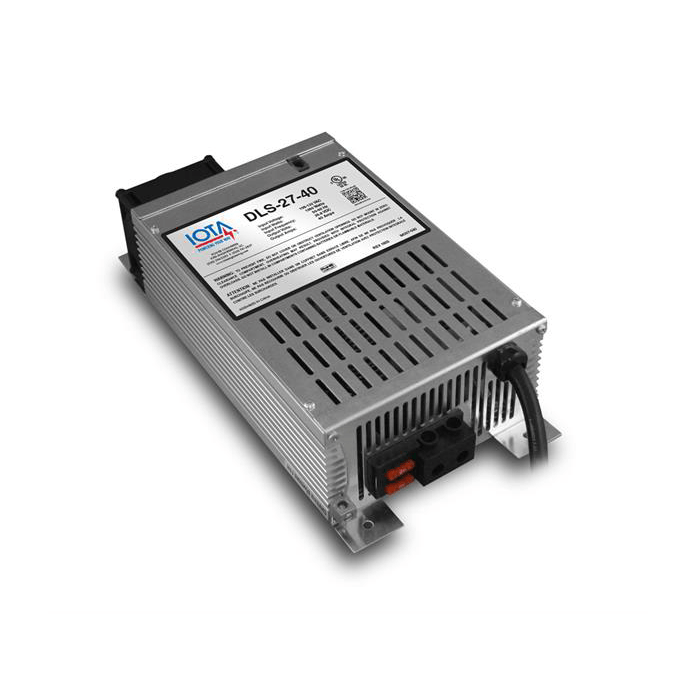

DLS-27-40
- Amps: 40A
- Max. Power Output, Continuous: 1100W
- Maximum AC Current (@108Vac): 19.5A
- Max Inrush Current, Single Cycle: 40A
- Weight: 7.8 lbs
