Johnson Pump 10-24488-03 CM Series Circulating Pump W/cord

Save $7.36
Johnson PumpSKU: 10-24488-03

Price:
Sale price$118.13 Regular price$125.49
Stock:
Sold out
Free Shipping* (Some exclusions apply)true

Description

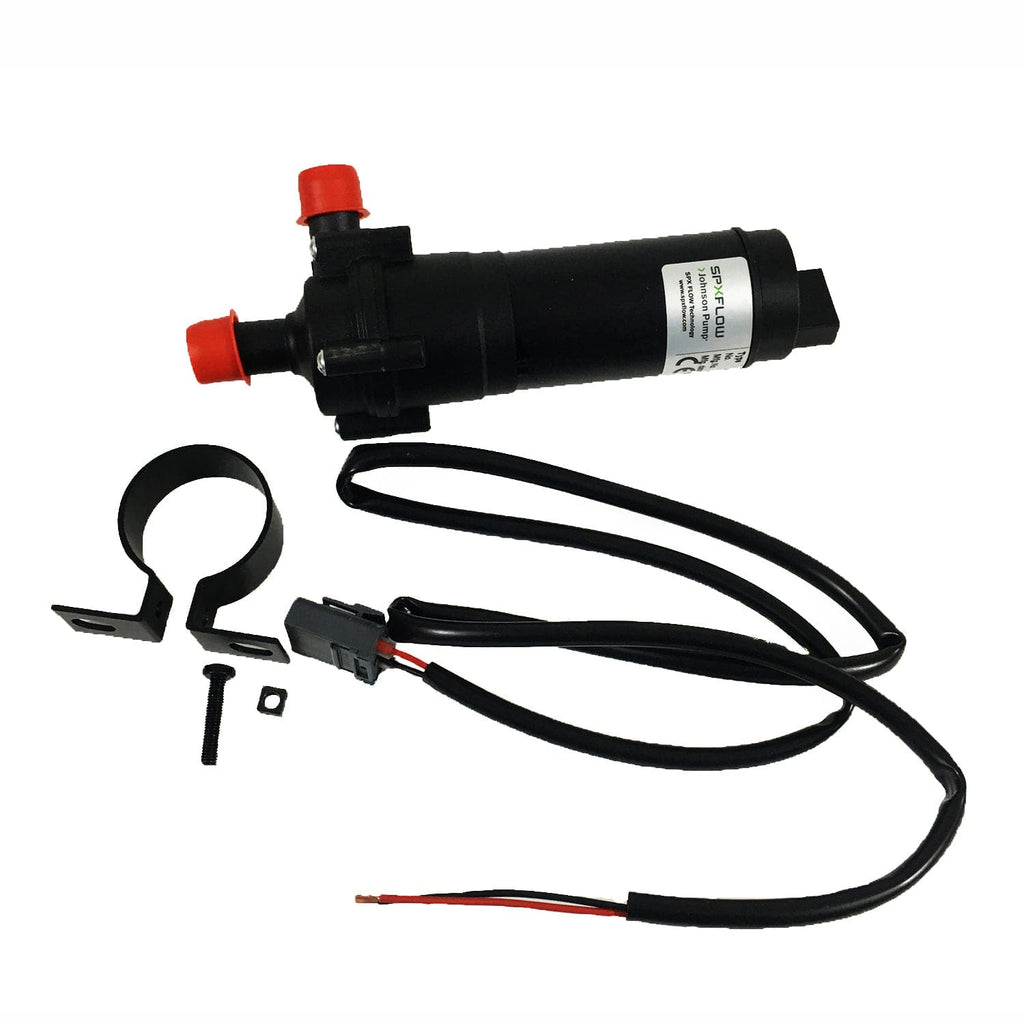

The Johnson Pump 10-24488-03 CM Series Circulating Pump with cord is a powerful and reliable solution for efficient water circulation in various applications. With its robust design and included cord, this pump ensures seamless installation and optimal performance, making it a dependable choice for your water circulation needs.

The CM-series pumps are standard-priming centrifugal pumps, requiring installation in a manner that guarantees they are always submerged or primed before operation. It's essential to avoid using these pumps for handling dirty water containing solid particles.

Features:

  • Extra heavy duty construction
  • CE approved
  • Hard wired leads
  • 12 volt DC operation
  • Provides 5.3 GPM flow rate with low current consumption
  • 5/8 in. inlet and outlet hose connections
  • Magnetic drive pump's leak proof design eliminates the need for shaft seal
  • Pumps up to 60% glycol mixture
  • Capable of handling temperatures from -40 degrees to 200+°F
  • Includes flexible DC power cord
  • 2 Year limited manufacturer's warranty

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged if flushed with water after each use or after each work day.

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Dry Running Max. 30 Minutes
gpm 5.2 GPM
Height 85 mm – 3.35"
Impeller PPA, Thermoplastic
Input Power Max. 14W
Length 177 mm – 6.97"
Liquid Water/glycol mixture; max. 60% glycol, fresh water
Liquid Temp. Min. -40°C Max. +100°C (Min. -40°F Max. 212°F)
Motor 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation.
Mounting Separate Universal Bracket for Flat Surfaces
Port Size Ø 16 mm (⅝") or 20 mm (¾") hose
ports 5/8"
Pump Body PPA, Thermoplastic
Shaft Stainless Steel
System Pressure 2.5 Bar Max (36 psi)
type CM30P7-1 with flexible cord
volts 12V DC
Weight 0.53 kg – 1.2 lbs
Width 68 mm – 2.68"
