Description

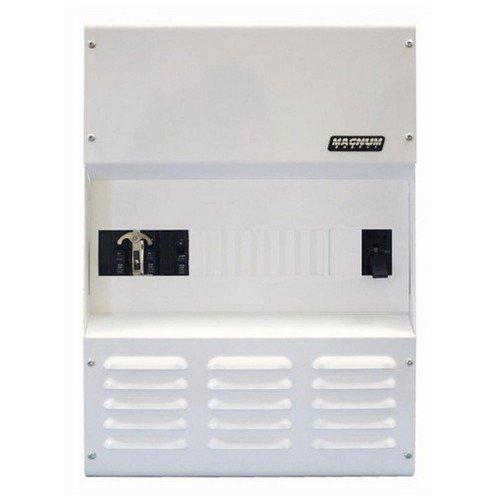

The MPSL - Magnum Panel, Single Enclosure, Low Power - is designed to make the installation and connection of up to two Magnum Energy inverter/chargers even easier. The MPSL accommodates Magnum Energy MS-PAE, MS, RD, or MSH-RE inverter/chargers, or other non-Magnum brand inverter/chargers.
***Inverters sold separately***
Expandable
Start with the enclosure and just one inverter and in the future expand to two inverters with ease, using the MPX.
Easy Installation
All connections are front mounted, including AC and DC breakers and the MPX.
DC Load Breakers
Fits either din rail or back-mount DC load breakers.
Convenient Knockouts
Knockouts on the side of the enclosure are compatible with most charge controllers.
Includes:
One DC breaker – 175A or 250A
One 60A AC bypass breaker
500A/50mv DC shunt
Inverter AC input protection
Inverter hood
Model Number MPSL175-30D
DC Breaker: 175A
AC Bypass: 30A Dual
Number of Inverter/Chargers: 2
Continuous Watts Accommodated: 8800watts
Output Frequency: 60 Hz
Dimensions: 27” x 18” x 15” (68.6 cm x 45.7 cm x 38.1 cm)
