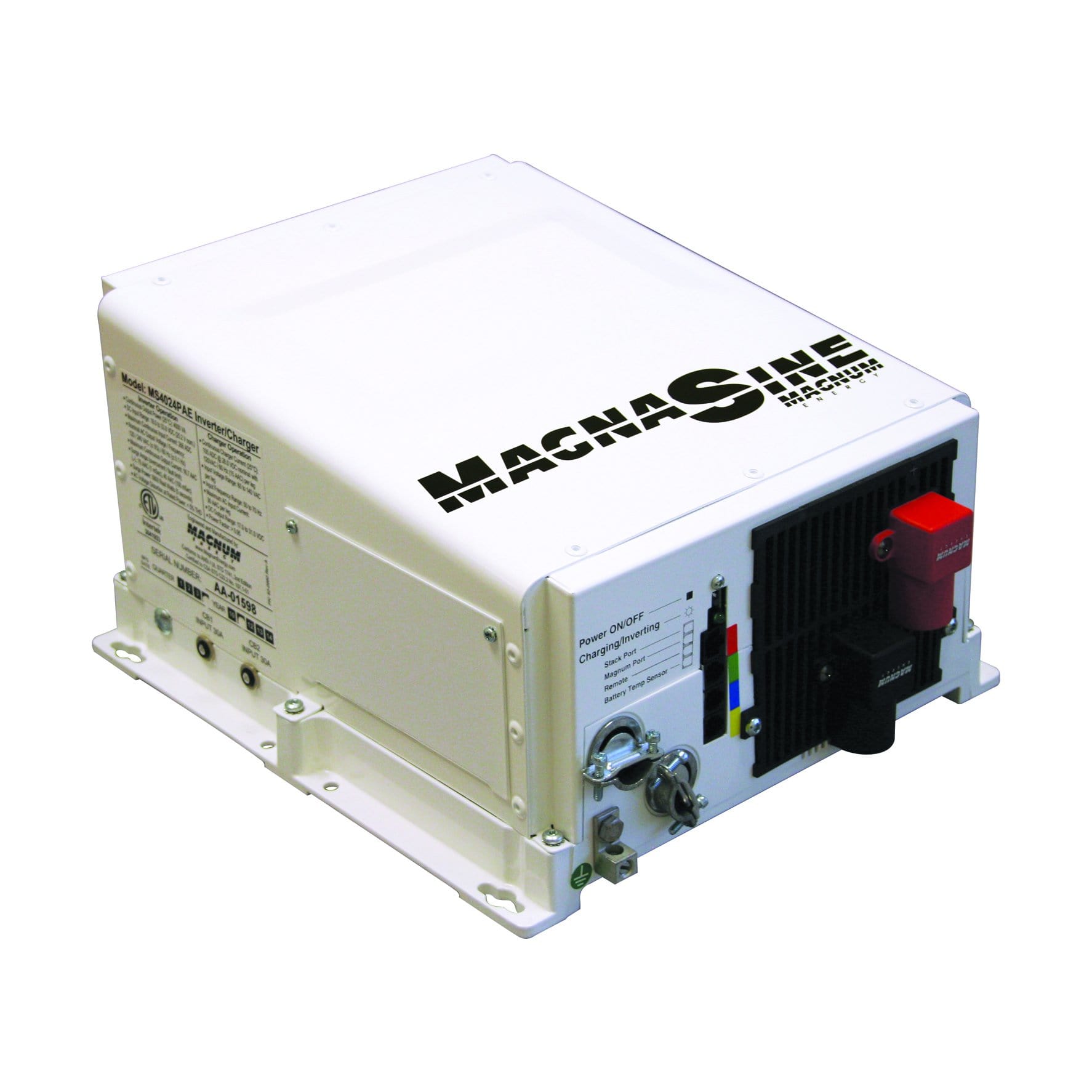

Magnum MS4024 4000 Watt 24 Volt Pure Sine Wave Inverter Charger

continuous output power

at 25 degrees C: 4000 VA, 105 ADC

dimensions

13.75"H x 12.65"W x 8.0"D (34.9 cm x 32.1 cm x 20.3 cm)

efficiency

85% (Charger)

input current

266 ADC (Maximum Continuous)

input current at rated output

(AC amps): 29

input voltage

24 Volts

input voltage range

18 - 34 VDC

max operating altitude

15,000 (4570 m)

nominal ac output voltage

120 VAC - 5%

nonoperating temperature

-40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F)

no load

(120 VAC output, typical): 25 watts

operating humidity

0 to 95% RH non condensing

operating temperature

-20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)

output frequency and accuracy

60 Hz - 0.1 Hz

peak efficiency

0.87

power factor

> .95

search mode

7 watts

total harmonic distortion

< 5%

transfer relay rating

2 legs at 30 A for 120V/30A or 240 V/60 A service.

transfer time

16 msecs

type	Pure Sine Wave

wattage

4000 Watts

waveform

Pure Sine Wave

weight

55 lb (24.9 kg)
