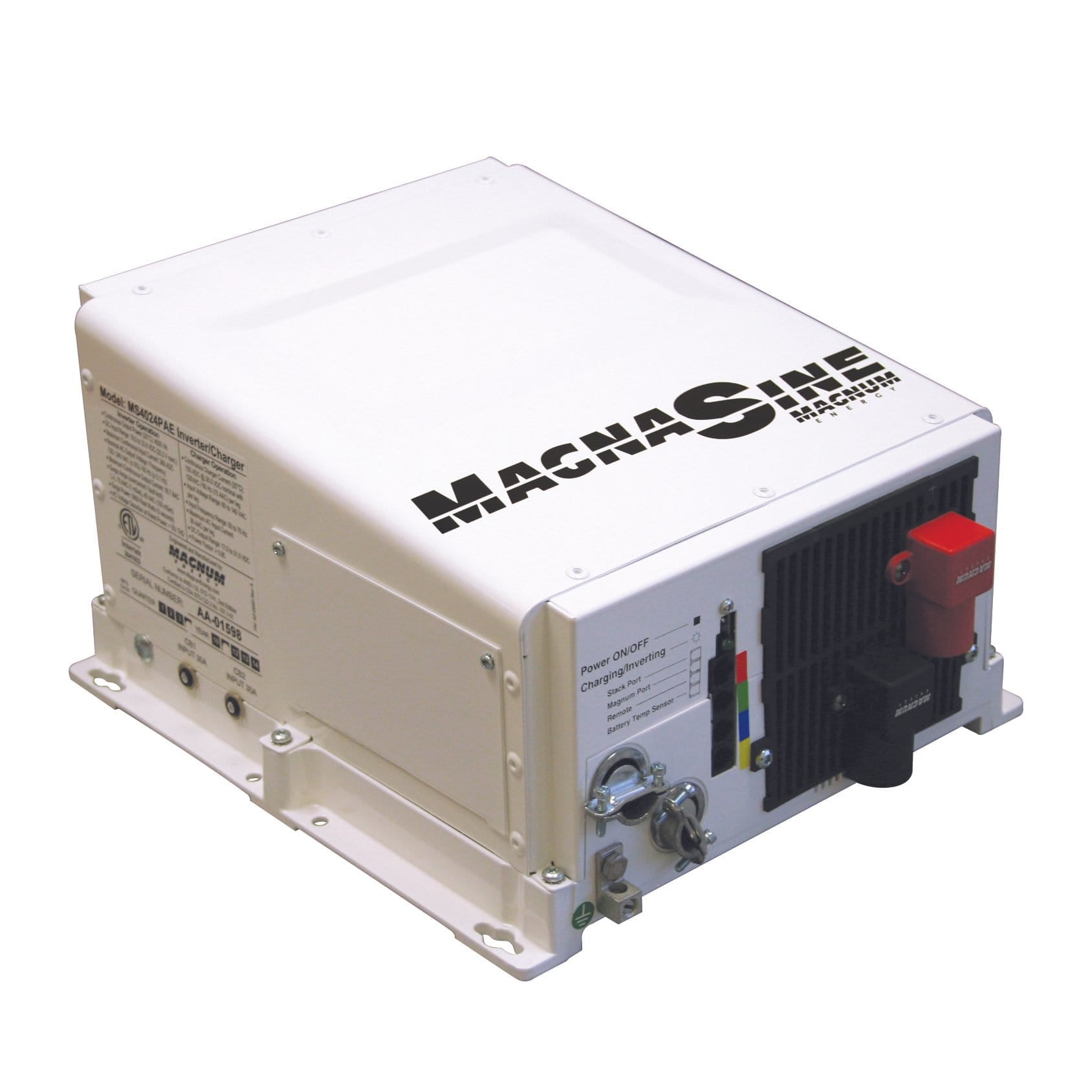

The Magnum Energy MS-PAE Series Inverter/Charger is a pure sinewave inverter tailored for demanding renewable energy applications. It offers two 120VAC output lines that are 180° out-of-phase, yielding a combined 240VAC output. Each line to neutral measures 120VAC, negating the need for stacking multiple units to achieve 240 volts.
For systems with higher power demands or expanded loads, up to four MS-PAE Series inverters can be connected in parallel. This parallel configuration enhances overall inverter power and surge capacity, enabling the support of larger single loads or multiple smaller loads. 3 Year Limited Manufacturer's Warranty
Features:
-
Pure Sine Wave: Power your T.V.s, stereos, plasma screens, and other sensitive electronics without worry. The pure sine wave inverter and power factor corrected charger provide clean, reliable inverter power with low total harmonic distortion (THD) of less than 5%.
-
Power Factor Corrected (PFC) Charger: Uses less energy from a generator than a standard charger – using 25-30% less AC than standard chargers.
-
No Series Stacking Required: The unique design of the MS-PAE Series can provide 120 and 240 volts output in one unit, eliminating the need to stack two units together to get 240 volts.
-
Parallel Stacking: Parallel up to four inverter/chargers for up to 17.6kw of power at 120/240V. The ME-ARTR router is required for parallel stacking the MS-PAE Series.
-
Choices: The MS-PAE Series comes in 24 and 48 volt configurations, allowing you to choose the model that is right for you.
-
Versatile Mounting: Mount the MS-PAE Series on a shelf or wall.
- Lightweight: The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
-
Multiple Ports: The MS-PAE Series provides multiple ports, including an RS485 communication port for network expansion, and a remote port.
-
Accessible Design: The extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make this inverter more accessible when it needs to be.
-
Convenient Switches: The MS-PAE Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.
