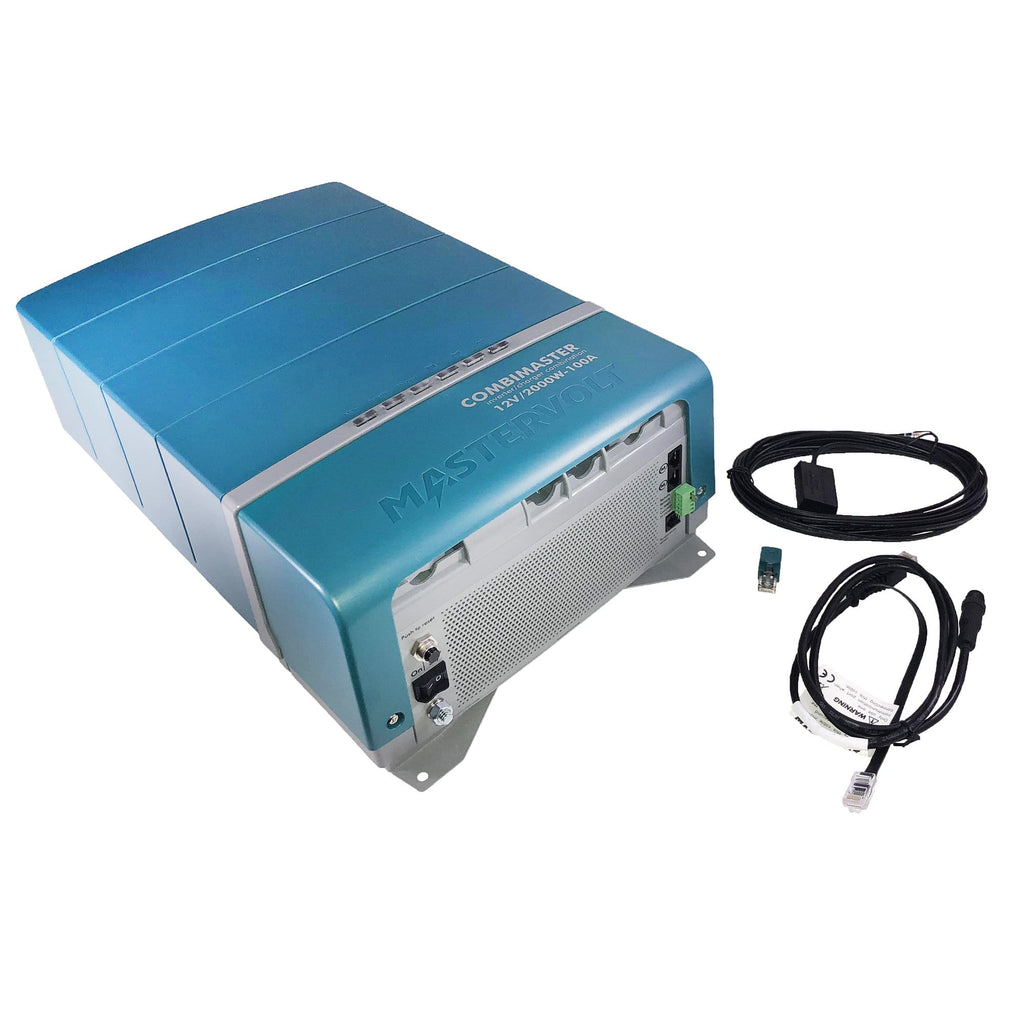

Mastervolt 35512000 Combimaster 12/2000-100 120V

MastervoltSKU: 35512000

Price:
Sale price$1,312.00
Stock:
In stock (2 units)
Free Shipping* (Some exclusions apply)true

Description

25% Off With Code: INVERTER25
While supplies last, terms and conditions apply.




Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

inverter chargerWith the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

  • Remote Control and Monitoring options
  • MasterBus compatible via SmartRemote or EasyView 5 display.
  • CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display.
  • NMEA 2000 compatible via 3rd party multifunctional display.
  • Most compact and lightweight Combi in its class.Mastervolt
  • Reliable, hum-free and longer operation from your batteries.
  • Starts even the heaviest and most sensitive loads.
  • Intelligent 3-step+ battery charger for faster and safer charging.
  • Automatic switching between mains and inverter mode.
  • Power Assist prevents blown mains fuses.
  • Generator compatible.
  • Integrated CZone, MasterBus and NMEA 2000 communication.
  • Quick installation with heavy duty connections.
  • E-mark certified.

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

AC input 30 A (switched)
AC input fuse Yes
AC output 47 A
Battery temperature sensor yes, included
Battery voltage sense automatic compensation
Charge characteristic UoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
Compliance ABYC A31, UL1236, UL1741, SAEJ1171
Cooling vario fan
CZone / NMEA 2000 compatible yes
Dimensions, hxwxd 448 x 284 x 155 mm 17.6 x 11.2 x 6.1 inch
Display/read-out LED display
Galvanic isolation Yes
Ground relay yes, configurable by means of mechanical jumper
Humidity protection conformal coating, max. 95 % relative humidity, non condensing
Input voltage range 90-140 V
MasterBus compatible yes
Max. charge current 100 A at 14.25 V (configurable)
Max. efficiency 93 %
Max. input current 17 A (adjustable)
No-load power consumption 30 W (on mode) / < 1 mA (off mode)
Nominal DC voltage 12 V (10.2–16 V)
Output frequency 60/50 Hz (configurable)
Output voltage 120V
Output waveform true sine
Peak power (30 sec) 3000 W
Power Assist yes, supports AC input with power from the battery
Power Sharing yes, allows you to select AC Input fuse setting
Protection degree IP23 (vertical mounting)
Protections over-temperature, overload, short circuit, high/low battery voltage
Recommended battery capacity 180-500 Ah (based on gel batteries, may differ for other types)
Safety class IEC protection class I
Surge power (5 sec) 4000 W
Synchronise with mains Yes
Temperature range -25 °C to 60 °C, derating > 40 °C -13 °F to 140 °F
Transfer frequency range 40-65 Hz
Transfer speed 10 ms
Transfer voltage range wide: 70–140 V / narrow: 90–140V
Weight 9.3 kg 20.5 lb
