Description

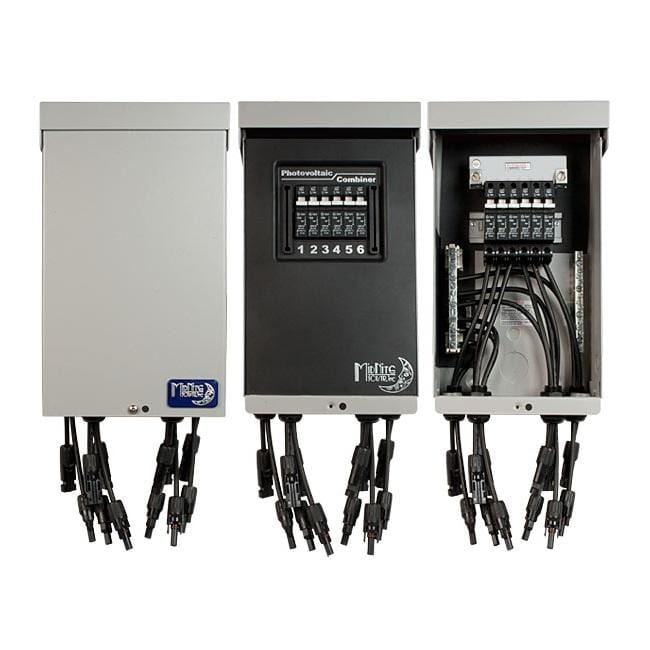

MNPV6-MC4-LV Pre-Wired Combiner.
The Pre-Wired MNPV6-MC4-LV Combiner With Pigtails And 15A Breakers Is Rated For Outdoor Use. The MNPV6-MC4-LV Is Rated For Up To 80A 150V.
- Type 1 Environmental Rating
- Fast, Convenient Hook Up With Industry Standard Connectors
- All Aluminum Powder Coated Housing That Won't Rust
- Flip Up Cover That Can Stay In The Open Position During Installation
- PV Negative Bus Bar With #6 And 1/0 Connections
- Chassis Ground Bus Bar With #6 And 1/0 Connections
- Included Dead Front Cover (MNPV6DF) Snaps Into Place After Wiring Is Complete For Safety
- Additional Knockouts On Bottom And Sides
- Warranty - 5 Yrs.
- Listed By ETL For US and Canada
- Made In The USA
California Residents: Warning Proposition 65
Specifications
| dimensions | 13.5"L x 8"W x 3.5"D |
| weight | 6 Lbs. |
