Description

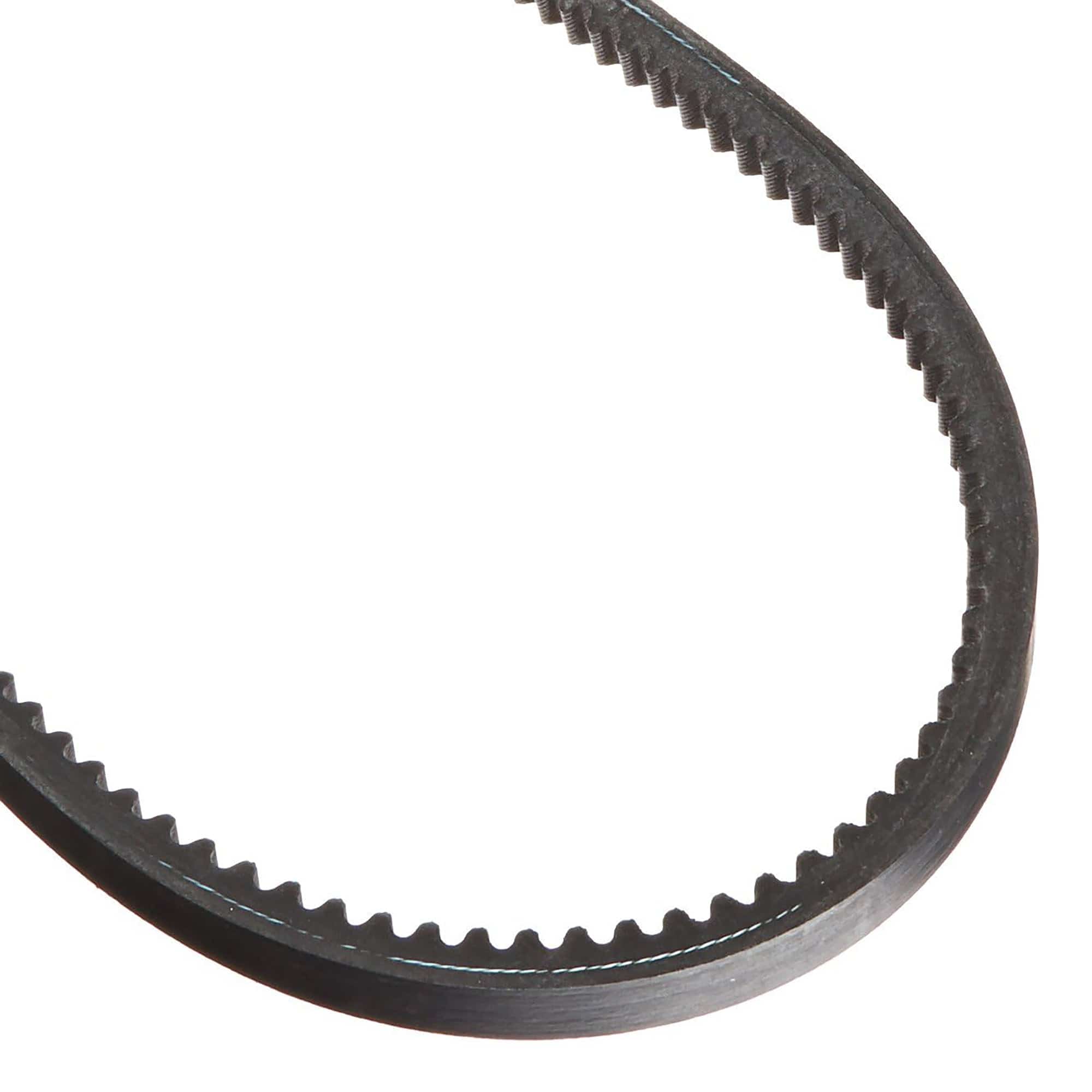

BX105 Tri-Power V80 Series V-Belt 108 Inch Length Constructed with Gates proprietary construction, this belt has a superior combination of flex and load carrying capacity, as well as less stretch resulting in less maintenance. Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required.
Patented Ethylene Material construction provides -70°F to +250°F temperature range to resist belt cracking
Notches molded into the belt during manufacturing increase flexibility, making this belt well suited for drives with smaller diameter sheaves
Belt Edge is machined for even sheave groove contact resulting in smoother running, less slip and wear.
Flex-Bonded Cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration.
Meets ARPM/RMA IP-3-2 oil and heat resistant standards
Meets ARPM/RMA IP-3-3 static conductivity requirements
Recommended Sheaves: Multi-Duty Sheaves
Belt Height: 13/32
Belt Top Width: 21/32
Outside Circumference (in): 108
