Description

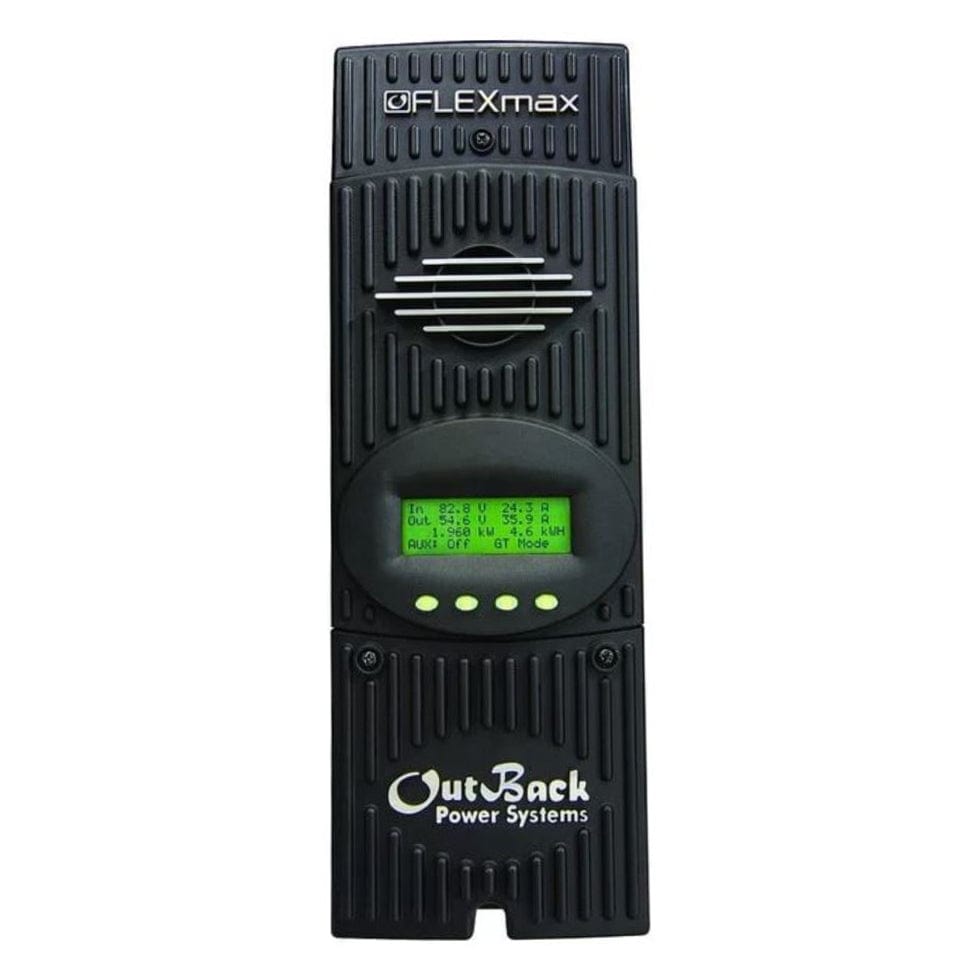

OutBack FM80-150VDC Continuous MPPT Charge Controller. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C). Includes features developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display, and provides unrivaled complete system integration.
Features:
- Maximum Power Point Tracking (MPPT)
- Active cooling and intelligent thermal management cooling
- Ambient temperatures as high as 104°F (40°C)
- Built-in, backlit 80 character display
- Integrated OutBack network communications
Specifications
| battery temp. compensation | Automatic with optional RTS installed / 5.0mV per ┬░C per 2V battery cell |
| certifications | ETL Listed to UL1741, CSA C22.2 No. 107.1 |
| charging regulation | Bulk, absorption, float, silent and equalization |
| data logging | Last 128 days of operation |
| dimensions | 16.25 x 5.75 x 4.5 (H x W x D) |
| display | 3.1ΓÇ¥ (8 cm) backlit LCD screen, 4 lines with 80 alphanumeric characters total |
| efficiency | 0.98 |
| maximum array (stc nameplate) | 12VDC systems: 1000W / 24VDC systems: 2000W 48VDC systems: 4000W / 60VDC systems: 5000W |
| maximum output current | 80A @ 104┬░F (40┬░C) with adjustable current limit |
| network cabling | Proprietary network system using RJ-45 modular connectors with CAT5 cable (8 wires) |
| nominal battery voltage | 12, 24, 36, 48, or 60VDC (Single model, selectable via field programming at start-up) |
| open circuit voltage solar | Module: 150VDC absolute maximum coldest conditions / 145VDC start-up and operating maximum |
| standby power consumption | n Less than 1W typica |
| temperature range | -40 to 60┬░C (power automatically derated above 40┬░C) |
| voltage regulation set points | 13 to 80VDC user adjustable with password protection |
| voltage step-down capability | Down convert from any acceptable array voltage to any battery voltage |
| warranty | 5 Year |
| weight | 12 lbs. |
