Description

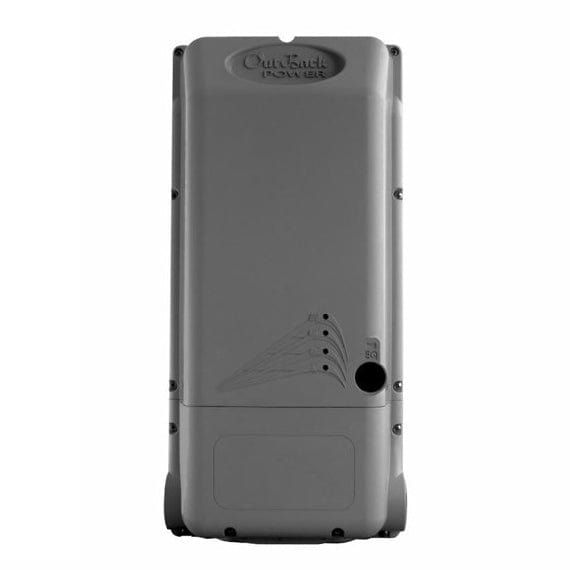

FM100-300VDC-AFCI 100 Amp, 24, 36, 48 V, 300 VDC Charge Controller
This product replaces FM100-300VDC
Specifications
| banks | 100 AHR |
| battery | OV cat II |
| charging range (output) | 20 to 68 VDC |
| continuous current output | 100 ADC |
| cycle | Charge - Three Stage |
| dimensions | 25.5 x 12 x 10 in. |
| enclosure | 3R |
| humidity | Relative - 4% to 100% condensation |
| input current | 64 ADC |
| nominal voltage | 24, 36, or 48 VDC (automatically adjusted) |
| operating temperature | Output power - Derating Ambient 25┬░C to 60┬░C (77┬░F to 140┬░F); controller begins derating at 25┬░C |
| operating temperature range | Ambient ΓÇô25┬░C to 60┬░C (ΓÇô13┬░F to 140┬░F) |
| standby power consumption | ~2.5 W |
| temperature compensation | Adjustable from 2 mV/cell/┬░C to 6 mV/cell/┬░C |
| voltage | Operating - Low 15VDC, High 290VDC |
| weight | 20 Lbs |
