Description

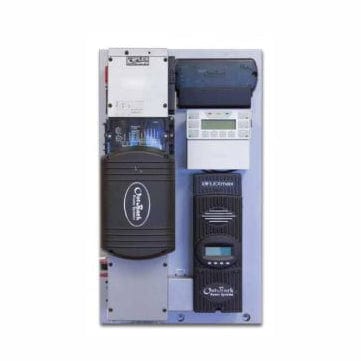

FP1 FXR2524A-01 FLEXpower One 2,500 Watts 24 Volts for Off-Grid and Grid-Tie
Specifications
| accessory ports | Remote temperature sensor (included), MATE3s and HUB communications |
| ac input frequency range | 54 to 66Hz (45 to 55Hz) |
| ac input voltage range | (MATE Adjustable) 85 to 140VAC |
| ac output current | (@ 25┬░C) 20.8AAC |
| ac output frequency | (selectable) 60Hz (50Hz) |
| ac output voltage | (selectable) 120VAC (100 to 130VAC) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 55ADC |
| certifications | UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF |
| continuous rating | (@ 25┬░C) 2500VA |
| dc input voltage range | 21 to 34VDC |
| efficiency | 0.92 |
| grid-interactive frequency | 59.3 to 60.5Hz |
| grid-interactive voltage range | 106 to 132VAC |
| humidity | Rating 93% |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | (100ms) 6000VA |
| maximum ac input current | 60AAC |
| maximum battery charging | AC: 14AAC DC: 55ADC Power: 1500VA |
| nominal dc input voltage | 24VDC |
| output voltage regulation | ┬▒2.5% |
| peak power | (30 Mins) 3200VA |
| surge power | (5 Sec) 5400VA |
| temperature range | Rated: ΓÇô20 to 50┬░C Operating: ΓÇô40 to 60┬░C Storage: ΓÇô40 to 60┬░C |
| warranty | Standard 5 year, extended 10 year available |
