Description

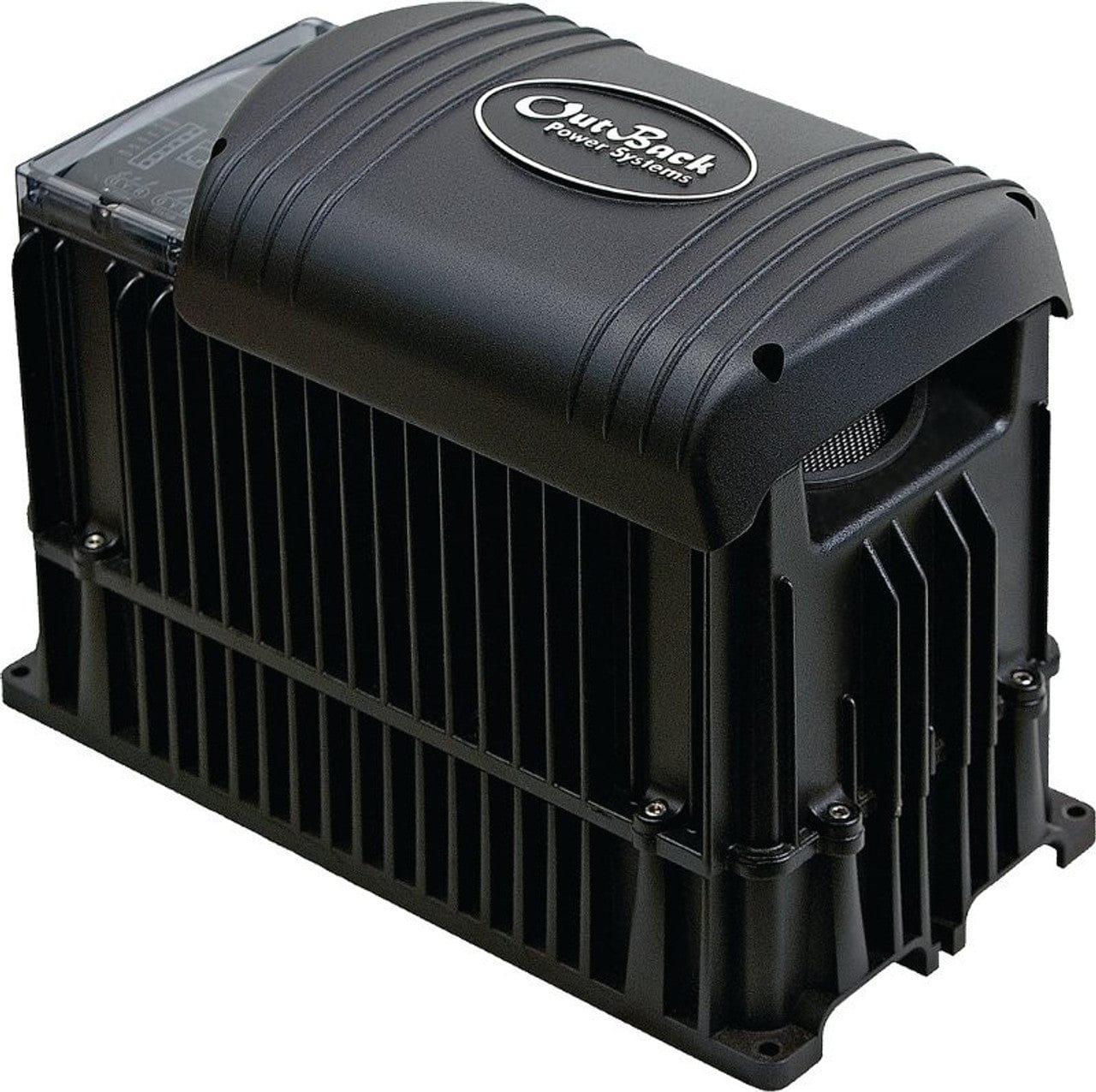

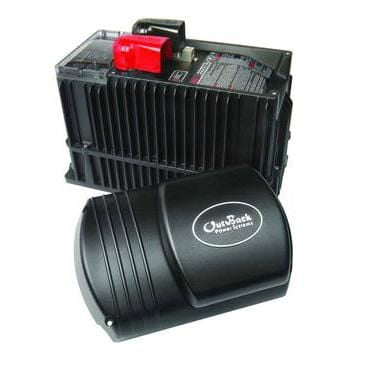

The latest, most advanced features on the industry’s most trusted and proven platform—that’s the essence of OutBack’s new FXR Series of Grid/Hybrid inverter/chargers. This unit is capable of off-grid or grid-connected use, and comes equipped with seven programmable modes, which include GridZero and Support Mode. This unit also boasts Advanced Battery Charging, which enables system designers to accommodate specific charging profiles and algorithms of new and emerging energy storage solutions which include Lithium Ion, Aqueous, and Flow chemistry batteries.
- Single-phase 120V sinewave output with a 48V version available.
- Programmable for seven different modes, including generator assist.
- Modular and stackable design supports up to nine inverters in three-phase configurations and ten inverters in grid-tied setups.
- Achieves up to 93% operating efficiency for optimal energy conversion.
- Features field-upgradable software for future updates and enhancements.
- Durable
California Proposition 65: WARNING Cancer.
Specifications
| AC Input Frequency Range | 54 to 66Hz (45 to 55Hz |
| Accessory Ports | Remote temperature sensor (included), MATE3 and HUB communications |
| Advanced Battery Charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| Battery Charge Output | 45ADC |
| Continuous AC Output Current | 30AAC (@ 25┬░C) |
| DC Input Voltage Range | 42 to 68VDC |
| Grid-Interactive Frequency | 59.3 to 60.5Hz |
| Grid-Interactive Voltage Range | 106 to 132VAC |
| Idle Power | Full: ~34W Search: ~9W Off: ~3W |
| Instantaneous Power | 6000VA (100 ms) |
| Maximum AC Input Current | 60AAC |
| Maximum Battery Charging | AC: 60AAC DC: 45ADC Power: 2450VA |
| Nominal DC Input Voltage | 48VDC |
| AC Input Voltage Range | 85 to 140VAC (MATE3 Adjustable) |
| AC Output Frequency | 60Hz (50Hz) (Selectable) |
| AC Output Voltage | 120VAC (100 - 130VAC) (Selectable) |
| accessory ports | Remote temperature sensor (included), MATE3 and HUB communications |
| ac input frequency range | 54 to 66Hz (45 to 55Hz |
| ac input voltage range | 85 to 140VAC (MATE3 Adjustable) |
| ac output frequency | 60Hz (50Hz) (Selectable) |
| ac output voltage | 120VAC (100 - 130VAC) (Selectable) |
| advanced battery charging | Flooded, gel, AGM, lithium-ion and flow chemistry |
| battery charge output | 45ADC |
| certificates | UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF |
| Color | Multicolor |
| Continuous Power | 600VA (@ 25┬C) |
| continuous ac output current | 30AAC (@ 25┬░C) |
| continuous power | 3600VA (@ 25┬░C) |
| dc input voltage range | 42 to 68VDC |
| dimensions | 13x8x16 (LxWxH) |
| efficiency | 0.93 |
| grid-interactive frequency | 59.3 to 60.5Hz |
| grid-interactive voltage range | 106 to 132VAC |
| idle power | Full: ~34W Search: ~9W Off: ~3W |
| instantaneous power | 6000VA (100 ms) |
| maximum ac input current | 60AAC |
| maximum battery charging | AC: 60AAC DC: 45ADC Power: 2450VA |
| nominal dc input voltage | 48VDC |
| output voltage regulation | ┬▒2.5% |
| Peak Power | 4000VA (30 Min) |
| peak power | 4000VA (30 Min) |
| Surge Power | 5400VA (5 Sec) |
| surge power | 5400VA (5 Sec) |
| Temperature Range | Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C |
| temperature range | Rated: -20 to 50┬░C Operating: -40 to 60┬░C Storage: -40 to 60┬░C |
| Total Harmonic Distortion | Typical: <2% Maximum: <5% |
| total harmonic distortion | Typical: <2% Maximum: <5% |
| warranty | 5 Year |
| weight | 62 Lbs. |
