Description

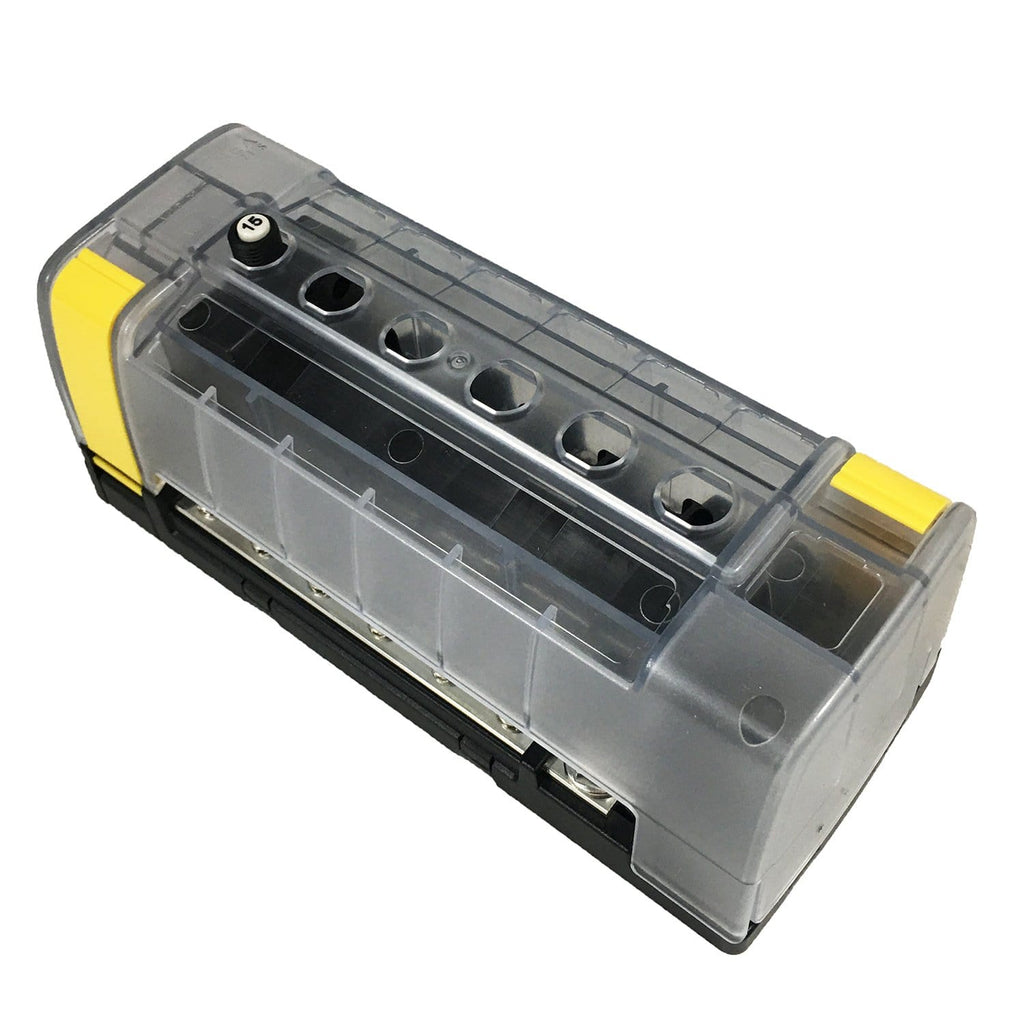

The 5052-BSS is a ST CLB, 6 position, circuit breaker block with a negative bus
Specifications
| circuits | 6 |
| height | 6.69in (169.93 mm) |
| maximum amperage | 100A (per block) |
| maximum operating temperature | 60┬░ C |
| maximum voltage | 32V DC |
| minimum operating temperature | 10┬░ C |
| mounting | #8 Screw (M4) or #8 Nut |
| mounting centers | 5.63in (143 mm) |
| negative bus | #10-32 Stud |
| positive bus | #10-32 Stud |
| source | #8-32 Screws with Captive Star Lock Washer |
| stud size | Common Source |
| weight | 0.75lb (0.34 kg) |
