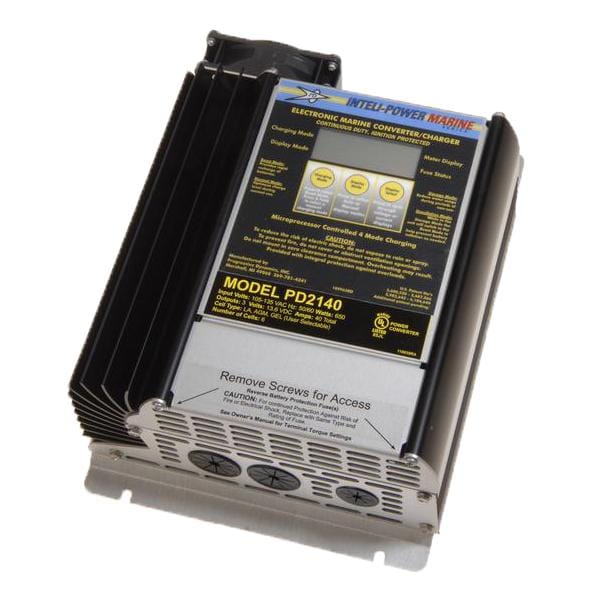

To ensure your boat has a sufficient source of power, head out onto the water with Progressive Dynamics' PD2140V 40-amp Electronic Marine Converter/Charger designed to simultaneously charge up to three separate battery banks. The charger takes 105-130 VAC, 50-60 Hz, or 650 Watts. 2 Year Limited Manufacturers Warranty.
Replaces: PD9245C
Features:
- Four-Stage Charging System
- Patented Microprocessor constantly monitors battery voltage and automatically selects one of the four charging modes; BOOST, NORMAL, STORAGE or EQUALIZE.
- Patented Reverse Battery Protection
- Allows the converter/charger to charge three separate banks of batteries. Each output is capable of handling the full rated current of the charger.
- Over Voltage Protection
- Prevents converter/charger from being damaged if the batteries are accidentally connected to the charger in reverse.
- Inteli-Power Converter/Chargers can be connected in series to provide a combination 12/24 Volt system, or in parallel to provide more current.
- Prevents high voltage spikes from damaging the converter/charger.
- Electronic Current Limiting
- Limits the output current to the maximum rating of the charger to prevent overheating and damage caused by shorts or excessive loads.
- Variable Speed Intelligent Cooling Fan
- Only runs as fast as required to maintain a more constant operating temperature inside the converter/charger. This feature reduces thermal stress caused by fans that cycle on and off.
- Programmable in the Field
- To provide optimum charging profiles for lead-acid, gel-cell, or AGM batteries.
- Regulated Output Voltage
- Prevents AC Line voltage variations from being transmitted to the batteries and 12 volt circuits.
- Automatic Over-Temperature Shutdown
- Prevents converter/charger damage in the event the fan is unable to cool the charger due to inadequate compartment ventilation.
- Series or Parallel Connection
- Inteli-Power Converter/Chargers can be connected in series to provide a combination 12/24 Volt system, or in parallel to provide more current.
Warning: Product may contain materials cautioned by California Proposition 65
