Description
This reliable replacement unit ensures efficient conversion of electrical power, providing a seamless and dependable solution for maintaining your RV's electrical needs on the road.
- Top ten fuse holders recommended for low current devices such as smoke
and carbon monoxide detectors. - 18 branch fuse holders with 4-30 Amp circuits. Maximum rating 20 Amps
on remaining circuits — available with terminal blocks . - LED indicators identify which fuse is blown.

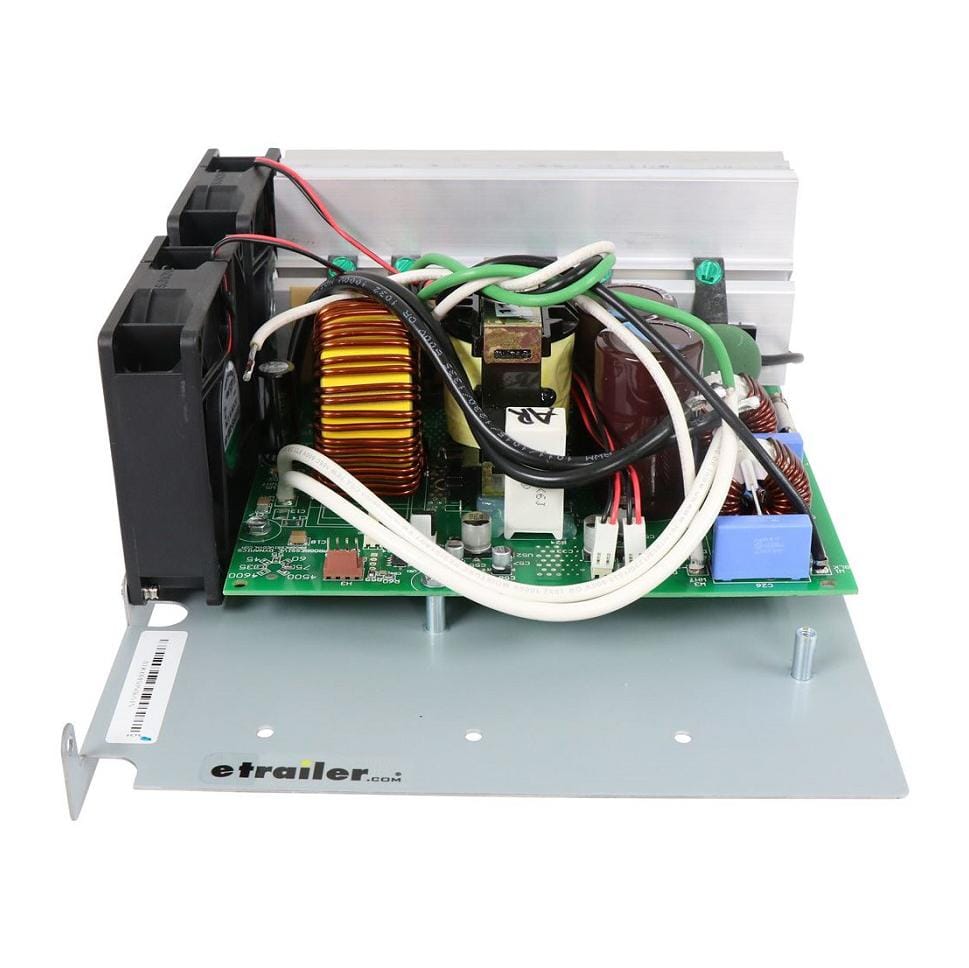

- Converter/Charger section is accessible from the front.
- Converter/Charger ratings of 60, 75 and 90 Amps.
- Easy access reverse battery protection fuses.
- DC disconnect tie in.
- Reverse battery protection
- Electronic current limiting
- High and Low AC input protection
- Intelligent, variable speed, cooling fan
- Lead Acid/ Lithium Switch is NEW feature
- Automatic thermal protection
- Press open door for easy access to circuit breakers
- Front access to large wiring compartment
- Optional DC Ground Buss can be user installed in the DC wiring compartment.
Warning: Product may contain materials cautioned by California Proposition 65
Replaces Models:
- PD4575CSV
- PD4575K18LS2
- PD4575K18LS8
- PD4575K18LS8V
- PD4575K18NS2B
- PD4575WI
Specifications
Input: 105-130VAC 50/60HZ 1300 Watts
Output: 13.6-14.6 VDC
Amps: 75 Amps
