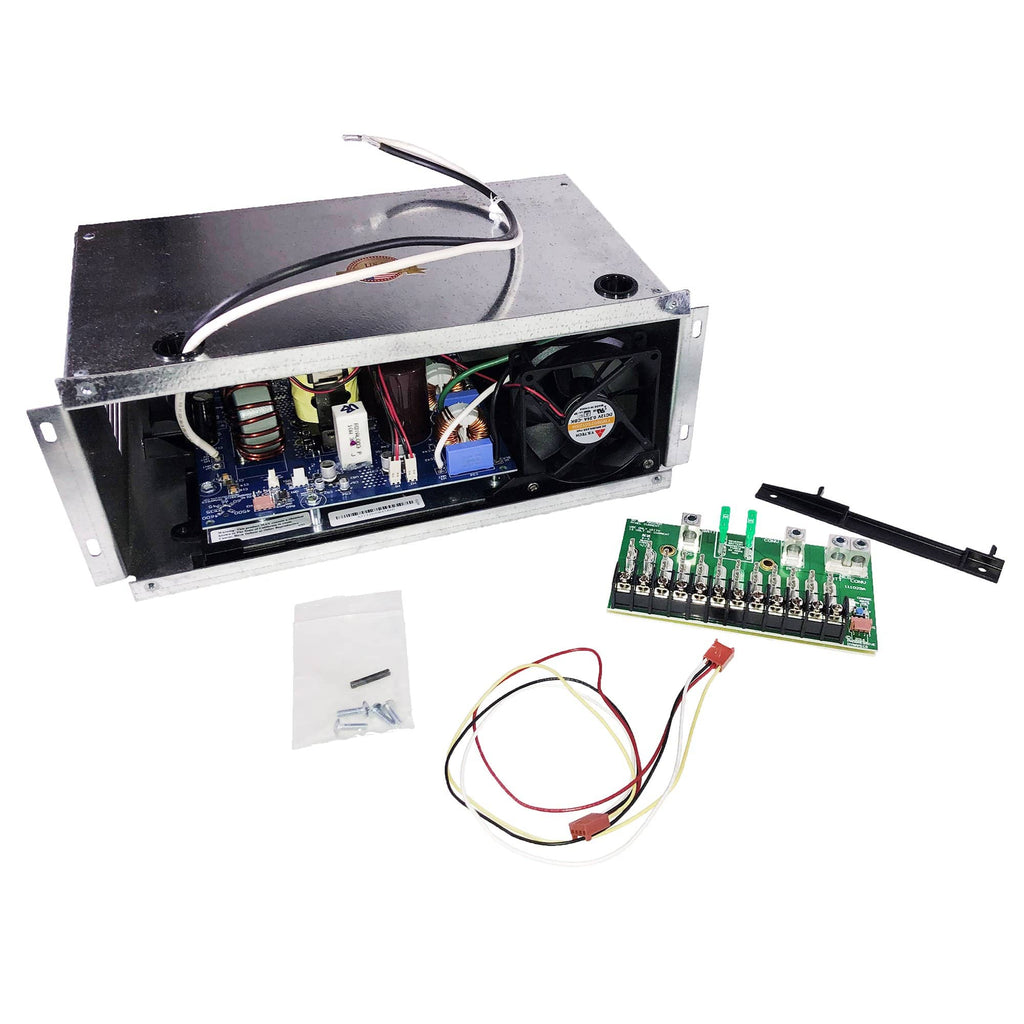

Progressive Dynamics PD4655V 55A Converter Charger Replacement Section w/Charge Wizard and Pendant
Roll over image to zoom in Click on image to zoom
Progressive Dynamics PD4655V 55A Converter Charger Replacement Section w/Charge Wizard and Pendant

Progressive Dynamics PD4655V 55A Converter Charger Replacement Section w/Charge Wizard and Pendant

Progressive DynamicsSKU: PD4655V
Price:
$243.00
Stock:
Only 1 unit left
Free Shipping* (Some exclusions apply)true

Description

The Progressive Dynamics PD4655V is a 55A converter charger replacement section that includes built in Charge Wizard and pendant.

Features:

  • Charge Wizard 4-State charging system built-in.
  • Dramatically increases battery life.
  • This converter/charger will not boil the battery!
  • 55 Amp (PD4655V), 45 Amp (PD4645V) and 35 Amp (PD4635V) models available.
  • The intelligent way to charge and maintain your RV battery.
  • Easy to install.
  • A metal enclosure is included in every package for replacement Parallax/Magnatek 6300 Series or 7300 Series Converter.

Specifications

dimensions 13.25"L x 8"W x 5.38"H
efficiency >80%
full load output voltage >12.6 VDC
input frequency 50-60 Hz
input voltage tolerance 105-130 VAC
no load dc output voltage 13.6 VDC
no load voltage tolerance +/- 0.3 VDC
operating temperature 0C - 50C
output current 55 Amp max. DC
peak inrush current 47A
ripple and noise voltage <50 MV RMS
storage temperature 20C - 80C
