Description

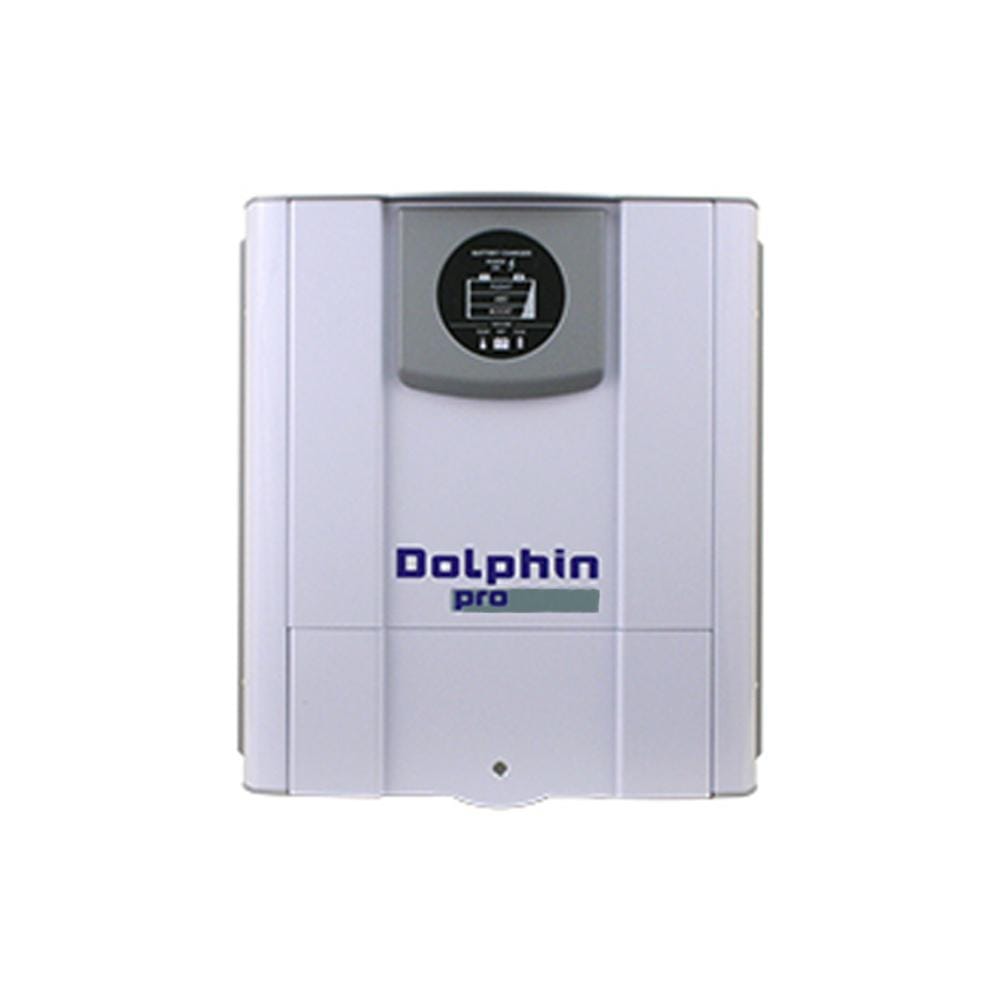

The Scandvik Dolphin 99502 is a robust, 24 Volt 40 Amp 3-bank battery charger designed to convert AC input to DC charging output. The unit casing is tough powder coated aluminum and includes hardware for easy mounting.
The Dolphin Series of battery chargers has always been recognized for its outstanding quality, one that the manufacturer is proud to support with a 2 year warranty. Due to production on a wide scale, Dolphin is able to offer high quality, truly international battery chargers, at a reasonable price.
Features:
- LED Display for Programming & Monitoring Functions
- Temperature sensor for battery compensation
- Switch mode technology and three stage charging design with Power Supply
- Modern lightweight and compact design with white aluminum powder coated casing
- Universal AC input with automatic voltage switching 115/230 VAC 50/60 Hz (24V-80A, 24V-100A and 24V-150A are 230VAC 50/60 Hz ONLY)
- 4 screw simple install with easy access removable panel
- ISO 9002 certified manufacturing plant
-
Three Stage Charging Curve
- Bulk Stage: A high current is sent to the battery until it reaches approximately 80% of full charge
- Absorption Stage: Voltage level is maintained & the current reduced until battery is 100% charged
- Float Stage: Voltage & current reduced to maintain battery. Float gives what the battery requires
Note: All Dolphin Battery Chargers and accessories are CE marked and manufactured to UL and ABYC specifications.
