Description

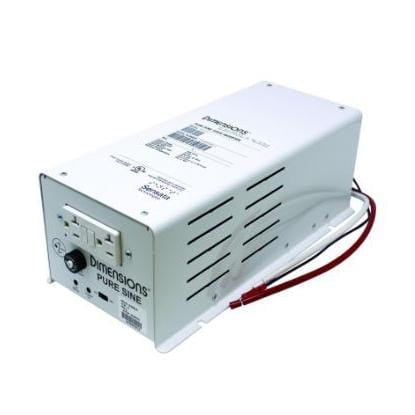

Sensata strives to provide the most reliable, highest performance inverter in the industry. The Sensata dimensions inverters utilize unique patented PC boards, transformer mounting techniques and cooling methods that are tolerant of high vibration and enclosed environments.
Specifications
| battery low voltage shutdown | 21V DC (with in-rush delay) |
| brand | Sensata |
| continuous current output | Up to 18 amps |
| continuous output power | 2200 Watts |
| dimensions | L x W x H inches 15.5 X 16 X 7.5 |
| efficiency | Up to 88% |
| input current | Up to 110 Amps DC |
| input nominal v dc | 24V DC |
| input voltage | 24 Volts |
| input voltage range | 22 TO 28V DC |
| operating temperature | -20 degrees to 60 degrees C (0 degrees to 140 degrees F) |
| output frequency | 60 Hz +/- 0.05% |
| output voltage | 120 Volts |
| peak current | 55 amps |
| peak power | 6600 Watts |
| wattage | 2200 Watts |
| waveform | Pure Sine Wave |
| weight | 42 lbs. |
