Description

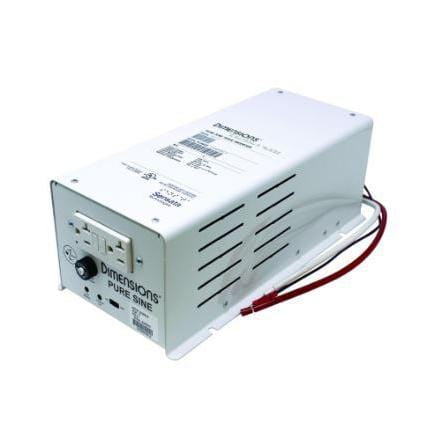

Sensata strives to provide the most reliable, highest performance inverter in the industry. The Sensata dimensions inverters utilize unique patented PC boards, transformer mounting techniques and cooling methods that are tolerant of high vibration and enclosed environments.
Specifications
| battery low voltage shutdown | 21V DC (with in-rush delay) |
| brand | Sensata |
| continuous current output | Up to 28 amps |
| continuous output power | 3300 Watts |
| dimensions | L x W x H inches 16 x 17 x 10 |
| efficiency | Up to 88% |
| input current | Up to 165 Amps DC |
| input nominal v dc | 24V DC |
| input voltage | 24 Volts |
| input voltage range | 22 to 28V DC |
| optimal efficiency | -20 degrees to 60 degrees C (0 degrees to 140 degrees F) |
| output frequency | 60 Hz +/- 0.05% |
| output voltage | 120 Volts |
| peak current | 80 amps |
| peak power | 9600 Watts |
| wattage | 3000 Watts |
| waveform | Pure Sine Wave |
| weight | 69 lbs. |
