Description

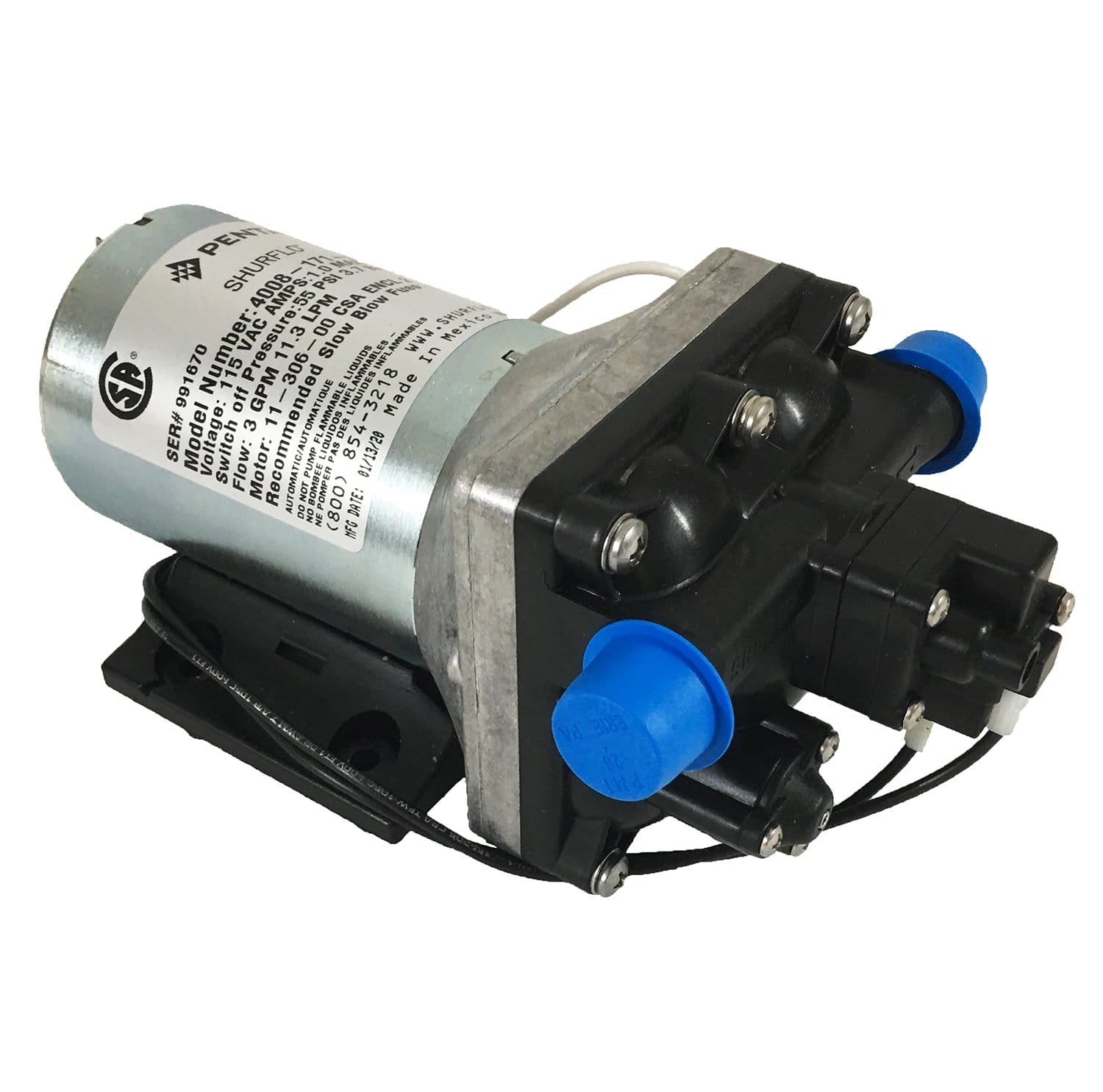

The Powermax Shurflo 4008-171-A65 is a 115v, 3.0 GPM RV water pump known for its reliability and performance. Featuring a one-piece diaphragm and internal bypass, the Shurflo Revolution design ensures longevity and efficient operation in various plumbing systems. Shurflo's reputation for quality is founded on the performance of their pumps, making this model a trusted choice for RV water pumping needs.
Features:
- Multi-fixture RV fresh water pump installation
- For general fresh water transfer
- Automatic demand
- Quiet operation
- Thermally protected
- Can run dry without damage
- Mounts in any position
Specifications
| Agency Approvals | CSA |
| Check Valve | (1-way operation) Prevents Reverse Flow |
| Control | Shut-Off 55 PSI [3.8 Bar] ± 2 PSI [0.13 Bar] Re-start 40 PSI [2.8 Bar] ± 2 PSI [0.13 Bar] Maximum By-Pass 62 PSI [4.2 Bar] ± 2 PSI [0.13 Bar] |
| Diaphragm | Santoprene |
| Dry-Prime | 6 feet [1.82 M] |
| Fuse | 1.5 Amp Recommended |
| Hardware | Stainless Steel and Zinc Plated Steel |
| Housings | Polypro |
| Inlet Pressure | 30 PSI Max. [2.06 Bar] |
| Leads | 16 AWG, 18” [45 cm] | Black common 17” [43 cm] | White Neutral, 18” (45 cm) Green - Ground |
| Liquid | 130°F [54°C] Max |
| Motor | 115V AC Permanent Magnet, Intermittent Duty |
| Ports | ½”-14 NPSM-Male |
| Protection | Thermal Overload, Automatic Restart |
| Run Dry | Yes |
| Type | 4 Chamber Diaphragm pump |
| Valves/Seals | EPDM |
| voltage | 115 Volts |
