Description

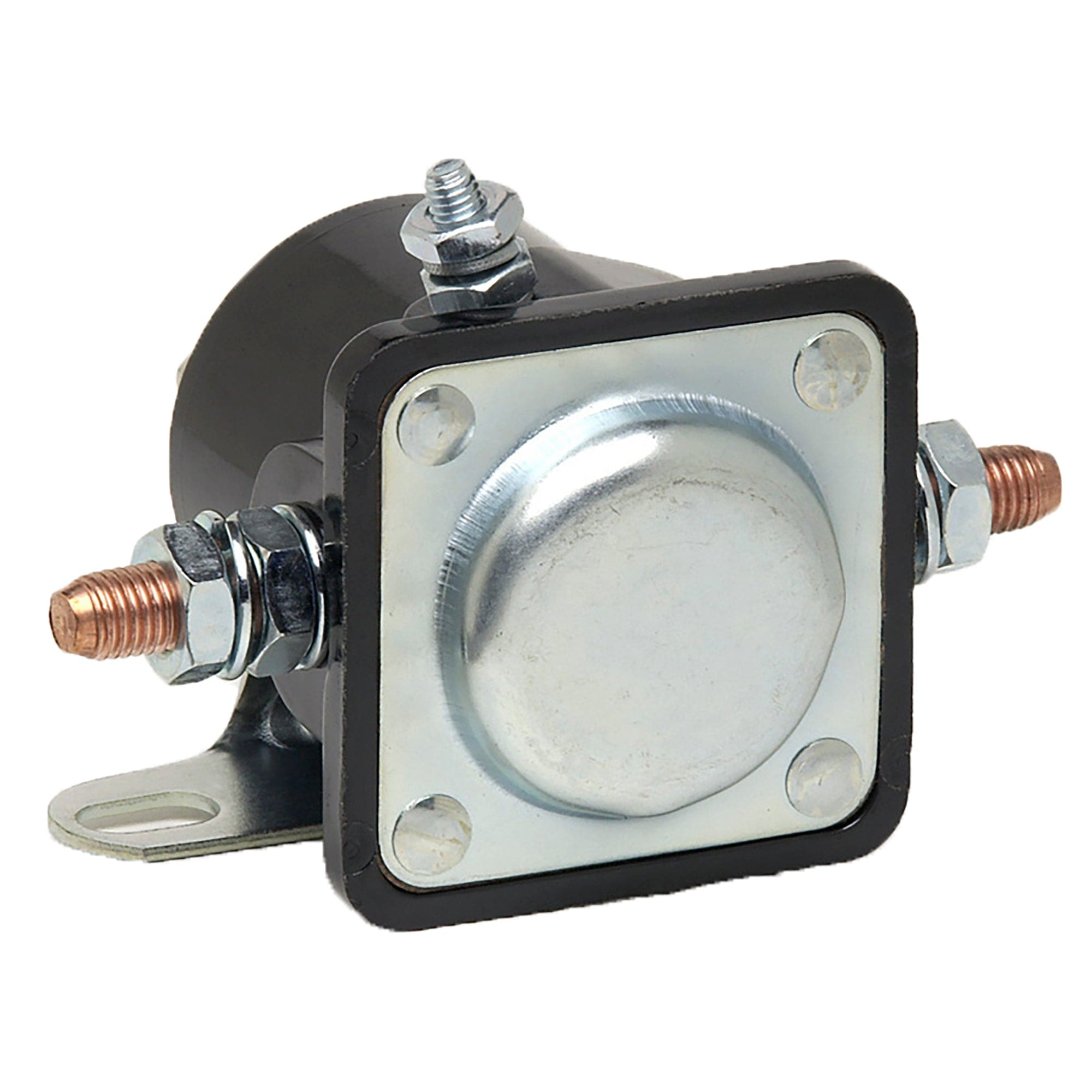

Introducing the Intermittent-Duty 750A SPST Series 12 V Solenoid Relay.
This solenoid relay model features a 12 V dc grounded coil with a coil impedance of 3.8 ohms and is rated for 500 A make, 100 A break.
The individually boxed, three-stud, normally open solenoid has a natural molded phenolic case and plated steel parts.
500 A make, 100 A break
12 V dc grounded coil with a coil impedance of 3.8 ohms
Because the coil is grounded through the bracket of the solenoid, the solenoid must be mounted on a clean metal surface free of contamination
Three-stud solenoid with a natural molded phenolic case and plated steel parts
Vibration rating of 2 G's x 2.5 hours each axis
Flat bracket style
Included hardware is assembled
Individually boxed
Current Rating (Continuous) in Amps: 750A
Circuitry: SPST
Contact Material: Copper
Housing: Phenolic
California Prop 65 - WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/
Specifications
| Circuitry | SPST |
| Contact Material | Copper |
| Current Rating | 750A |
| Housing | Phenolic |
