Description

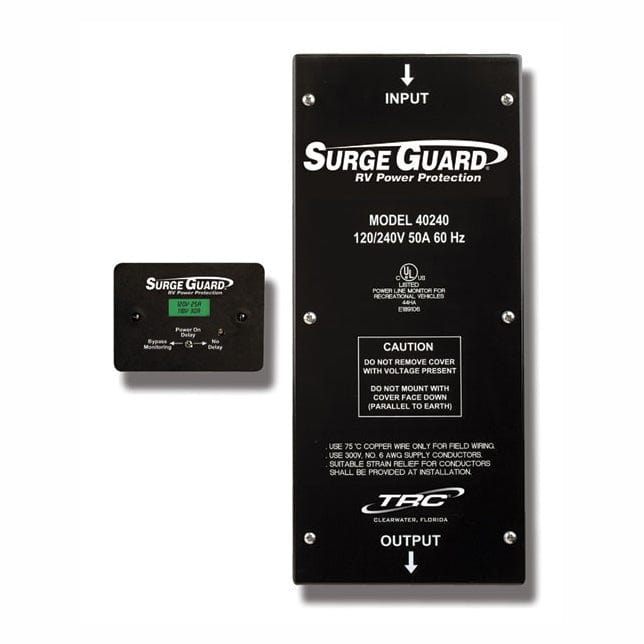

The Surge Guard Plus provides bumper to bumper RV protection from faulty power for 50 Amp applications.
- Over/under voltage protection. Contactor opens outside of (102-132V) range after 8-second delay.
- Over/under frequency protection. Contactor opens outside of (54-70Hz) range after 30-second delay.
- Source power connection diagnostics. Contactor will not close or will open in the event of an open line, open neutral, open ground conductor, or reverse polarity condition.
Specifications
amps | 50 Amps |
electrical rating | 120/240V, 50A |
length | 15.25 inches |
max spike current | 130,000A |
surge suppression | 3,350 Joules |
weight | 9.2 lbs |
