Description

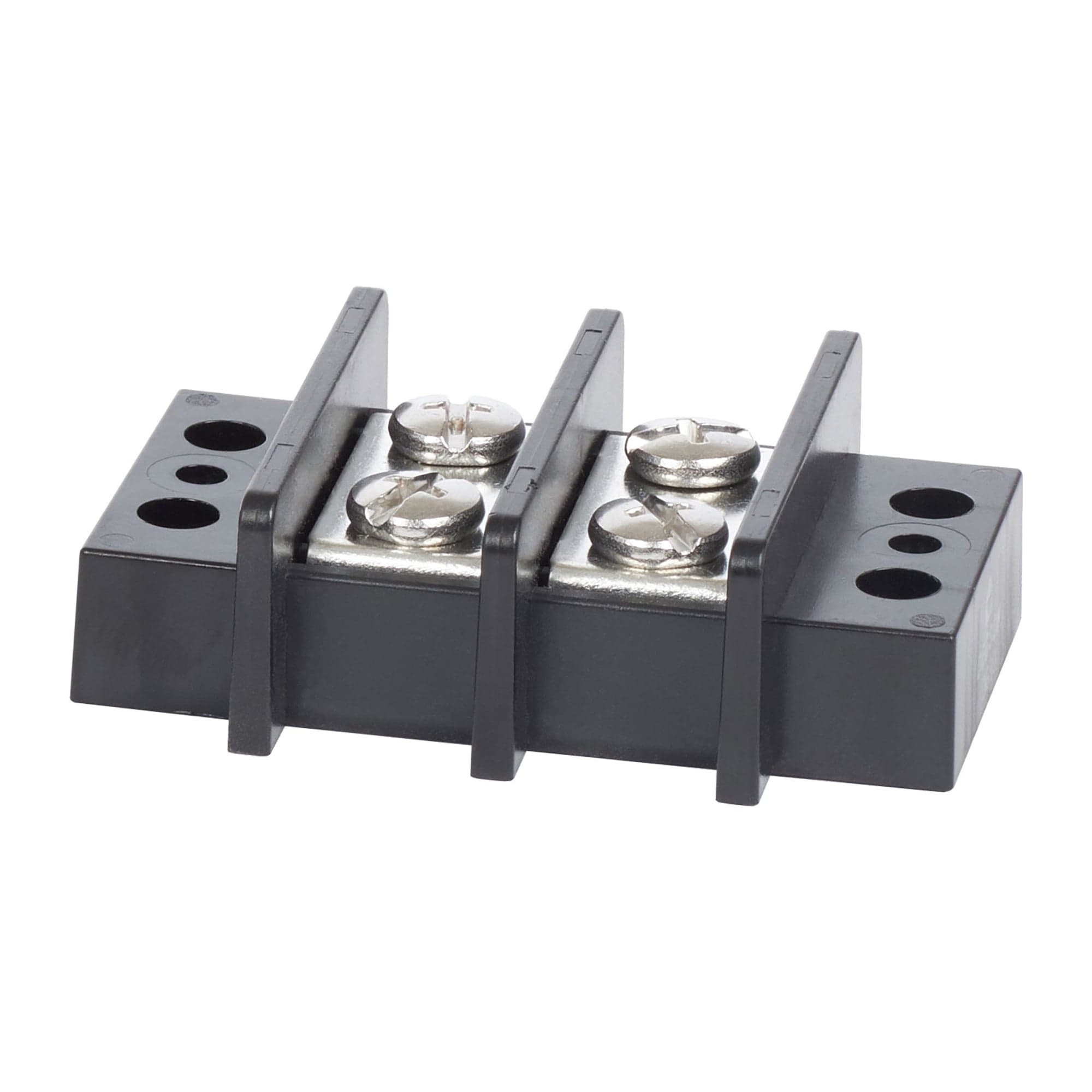

The Blue Sea Systems 2602 Terminal Block is a high-performance solution for managing electrical connections, with a robust 65A capacity and 2 circuit design. Ideal for applications requiring reliable power distribution, this terminal block is built to handle demanding environments.
- 65A Capacity: Accommodates up to 65 amps per circuit, ensuring robust power management.
- 2 Circuit Configuration: Provides 2 connection points for straightforward and efficient wiring.
- Durable Construction: Designed to endure harsh conditions, making it suitable for marine and industrial applications.
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications
Circuits: 2
Screw Material: Stainless Steel
Max Voltage: 600V AC/DC
Continuous Rating: 65A
Base Material: UL 94 V0, PC
Bus Material: Nickel-Plated Brass
Mounting Screw: #10 [M5]
Screw Size: #10-32
Terminal Screws: M5
California Proposition 65: WARNING Cancer. www.P65Warnings.ca.gov
