Description

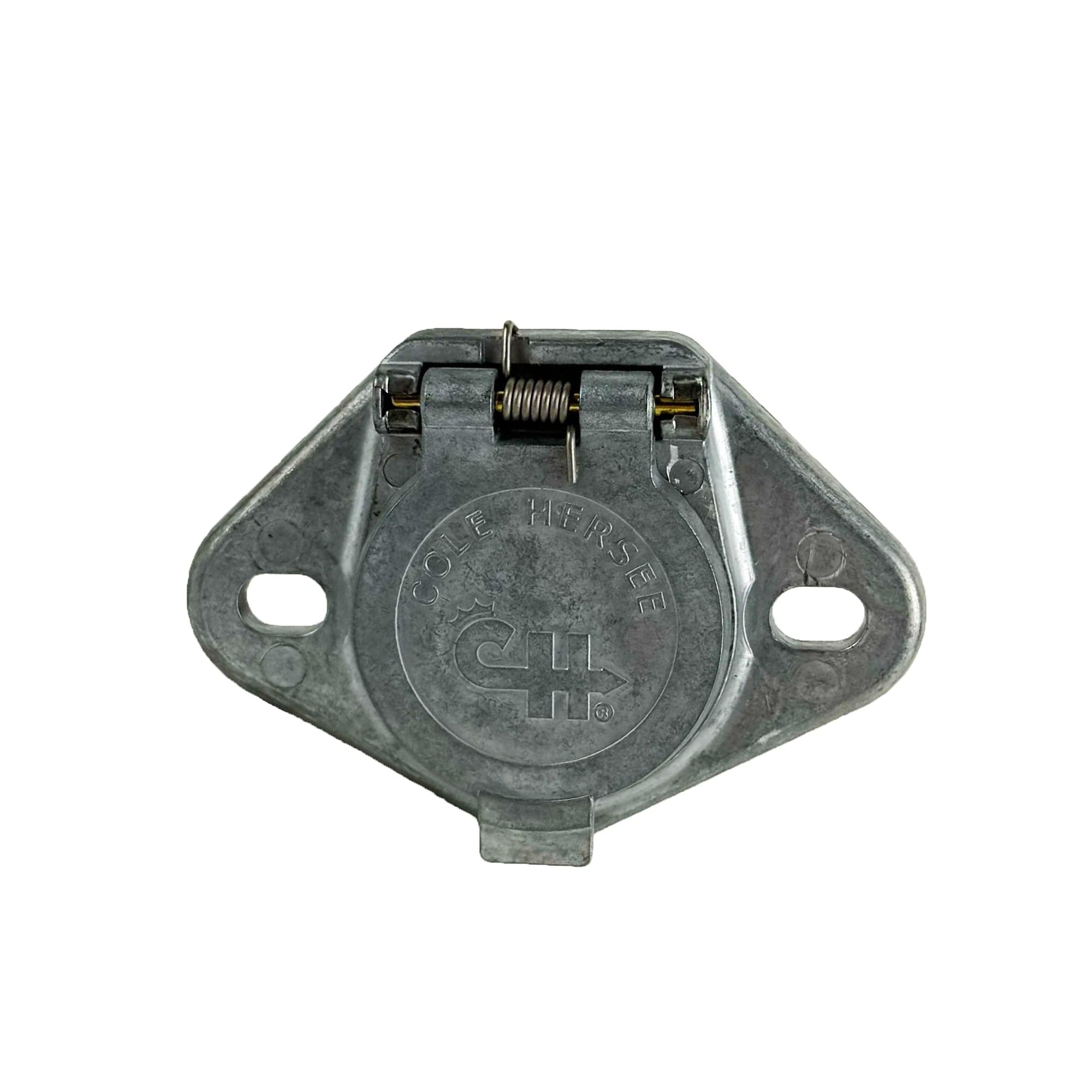

Trailer Connector 1 Pole 11041-BX
- Normally used with a trailer where only limited functionality (taillights. brake lights) is needed.
- Ideal for boat trailers. or RVs towing a car on a flatbed trailer.
- Diecast metal housings.
- Screw terminals accept up to 12AWG wire.
- Replaceable interiors.
- Brass split-pin contacts are aligned to assure proper contact and minimal voltage drop.
Spring-loaded socket doors. plug locks securely into the opening. - Wiring codes are identified on the insulator.
- Two mounting holes on the flange 17/64" (6.7mm) diameter. 2 15/16" (74.6mm) on centers.
- Mount through 1 3/8" (34.9mm) diameter hole.
- With special housing that protects terminals from roadsplash. See also Automotive Connectors such as 11134 and M-115
Housing: Diecast Metal
Circuitry: 1
Input Terminals: Brass
Contact Material: Solder
